Products Description

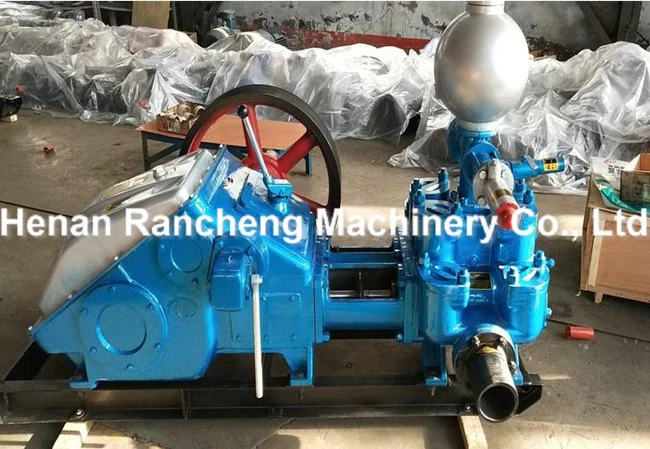

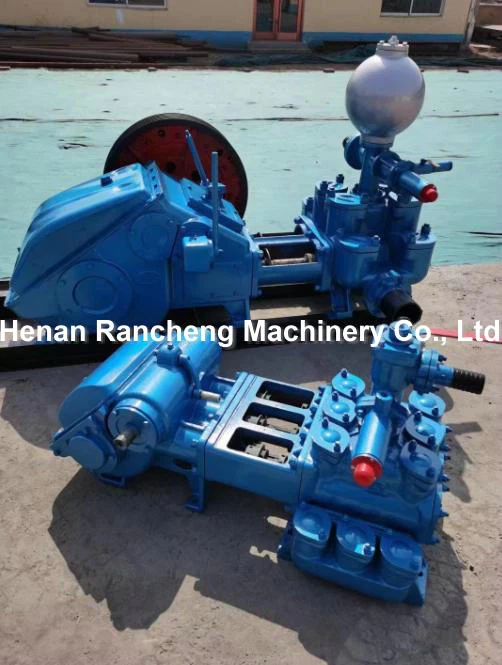

The BW850 Mud Pump is a compact, durable, and high-performance double-cylinder, single-acting horizontal piston pump, engineered to deliver reliable mud circulation for a wide range of drilling operations. Designed for geological exploration, mineral resource drilling, foundation engineering, and large-diameter water well drilling, it provides stable and efficient fluid delivery even under demanding field conditions.
With a displacement range of 600 to 800 liters per minute (L/min), the BW850 offers strong adaptability to different geological formations and drilling depths. It is typically used with large-diameter drilling rigs in the 200–600 m depth range, supplying flushing fluid to the borehole to improve drilling efficiency and hole quality. The pump is also suitable for water well rigs up to 300 m deep and 500 mm in diameter, ensuring efficient cuttings removal and bit cooling.
The pump features a horizontal, double-cylinder, double-acting design that ensures a smooth and continuous flow of drilling fluid. Its dry-type friction clutch provides flexible variable control, stable transmission, and low noise operation. The simple internal structure allows for convenient maintenance, while the low center of gravity improves operational stability and vibration resistance. Optional bi-metal cylinder liners significantly extend service life and reliability in abrasive conditions.
The BW850 performs essential drilling functions such as bit cooling, cuttings removal, and borehole wall protection, maintaining consistent pressure to prevent collapse. Its compact and portable construction makes it especially suitable for mountainous and complex terrains, where efficient mud circulation is critical to maintaining productivity and drilling safety.
BW850 Mud Pump Specifications
|
Pattern |
Horizontal double-cylinder reciprocating double-acting piston pump |
|
|
Cylinder dia(mm) |
150 |
|
|
Stroke(mm) |
180 |
|
|
Pump speed |
82 |
58 |
|
Flow(L/min) |
850 |
600 |
|
Rated Output Pressure(Mpa) |
2 |
3 |
|
Weight(kg) |
1500(without engine) |
|
|
Dimension(mm) |
2000*1030*1400 |
|
|
Power |
37KW |
|
Product Features
01. Stable and Continuous Fluid Output
02. Adjustable Flow and Pressure Range
03. Multi-Power Compatibility
04. Compact Size for Easy Transport and Installation
05. Simplified Maintenance, Long Service Life
About Transportation
Delivery time: 10-15days
We use professional equipment to frame the boxes. We will arrange specially-assigned person to inspect every step. Ensure transportation safety.
Application
The BW850 mud pump is primarily used in conjunction with drilling rigs to circulate drilling fluid (mud or water) during borehole drilling. It plays a critical role in cooling and lubricating drill bits, carrying cuttings to the surface, and stabilizing the borehole wall to prevent collapse.
In agriculture, the BW850 mud pump is commonly used for irrigation on terraced or hilly farmland. Its high-pressure delivery, low energy consumption, and portable design make it well-suited for water conveyance in remote or uneven terrain.
The BW850 mud pump is also a key component in geological and mineral exploration projects. During core drilling, the pump ensures continuous fluid circulation to maintain a clean borehole bottom, improve drilling efficiency, and reduce equipment wear by cooling the drill string.
