A mud pump is a crucial component in various drilling operations, and its valve plays an essential role in ensuring proper fluid circulation. Over time, mud pump valves can get damaged due to continuous use, abrasive materials in the mud, and high - pressure conditions. As a mud pump supplier, I understand the importance of having a well - functioning mud pump, and in this blog, I'll guide you through the process of repairing a damaged mud pump valve.
1. Pre - repair Inspection
Before you start the repair process, it's vital to conduct a thorough inspection of the mud pump valve. First, shut down the mud pump and relieve the pressure in the system to ensure your safety. Remove the valve assembly carefully from the pump. Use a magnifying glass or a borescope to examine the valve for signs of wear, cracks, or other damages. Look for any signs of erosion on the valve seat and the valve disc. Erosion can cause a decrease in the valve's sealing ability, leading to fluid leakage.
Check the valve's spring for any signs of deformation or breakage. A damaged spring can affect the valve's opening and closing performance. Also, measure the dimensions of the valve components, such as the diameter of the valve disc and the height of the valve seat, using a caliper or a micrometer. Compare these measurements with the manufacturer's specifications to determine if the components are within the acceptable tolerance range.
2. Cleaning the Valve Components
Once you've completed the inspection, it's time to clean the valve components. Use a suitable cleaning solvent to remove any mud, dirt, or debris from the valve disc, seat, and spring. You can soak the components in the solvent for a few hours to loosen the stubborn deposits. Then, use a wire brush or a soft - bristle brush to scrub the components gently. Make sure to clean all the crevices and passages thoroughly.
Rinse the components with clean water and dry them with a clean cloth. Inspect the components again after cleaning to ensure that all the contaminants have been removed. Cleaning the components not only helps in the repair process but also improves the overall performance of the valve.
3. Repairing Minor Damages
If the inspection reveals minor damages such as small scratches or surface wear on the valve disc or seat, you can repair them using appropriate methods. For small scratches on the valve disc, you can use a fine - grit sandpaper to smooth out the surface. Start with a coarse - grit sandpaper to remove the deeper scratches and then finish with a fine - grit sandpaper to achieve a smooth finish.
For minor wear on the valve seat, you can use a valve seat grinder to restore the proper seating surface. Make sure to follow the manufacturer's instructions when using the grinder. After grinding, measure the surface flatness of the valve seat to ensure it meets the specifications.
4. Replacing Damaged Components

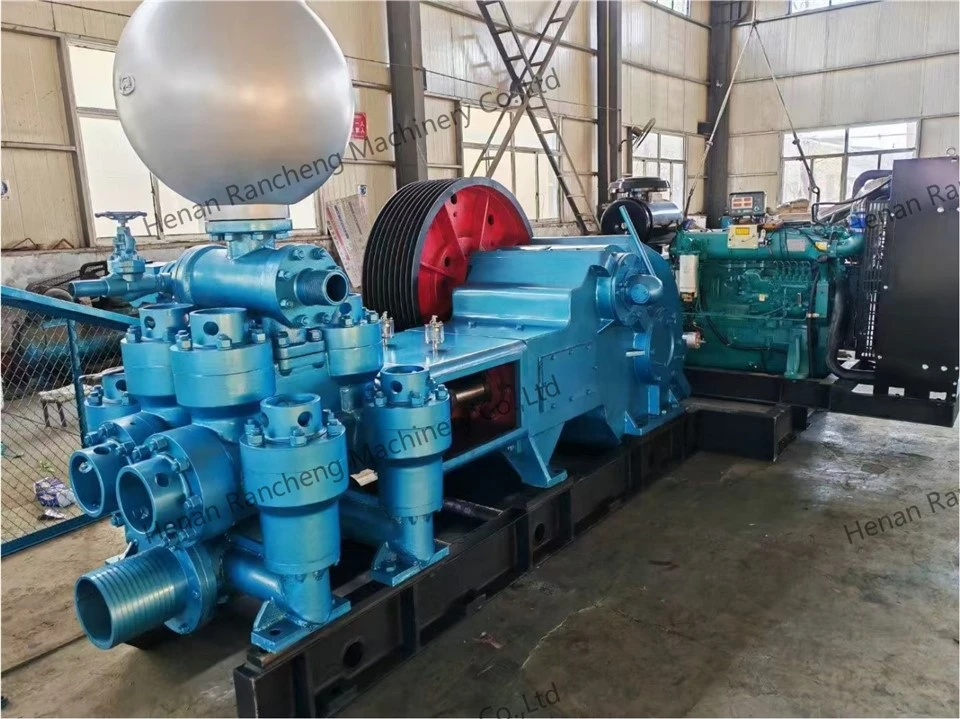

In cases where the damage is severe, such as large cracks or significant wear, it's necessary to replace the damaged components. As a mud pump supplier, we offer a wide range of replacement parts for different types of mud pumps, including BW1200/7 Mud Pump, BW600 Mud Pump, and BW160 Mud Pump.
When replacing the valve disc or seat, make sure to select the correct part that matches your mud pump's specifications. Install the new components carefully, following the proper installation procedures. Use a torque wrench to tighten the bolts to the recommended torque value. This ensures a proper seal and prevents leakage.
5. Reassembling the Valve
After repairing or replacing the damaged components, it's time to reassemble the valve. Start by installing the valve spring in the correct position. Make sure the spring is properly seated and not twisted. Then, place the valve disc on the seat and check for proper alignment.
Carefully install the valve cover and tighten the bolts evenly. Use a gasket between the valve cover and the valve body to ensure a leak - proof seal. Once the valve is reassembled, perform a visual inspection to ensure that all the components are installed correctly.
6. Testing the Repaired Valve
Before reinstalling the valve in the mud pump, it's essential to test its functionality. You can perform a simple pressure test using a pressure gauge and a test stand. Connect the valve to the test stand and gradually increase the pressure to the normal operating pressure of the mud pump.
Check for any signs of leakage around the valve. Observe the valve's opening and closing performance. The valve should open and close smoothly without any hesitation. If the valve passes the pressure test, it's ready to be reinstalled in the mud pump.
7. Reinstalling the Valve in the Mud Pump
Once the valve has passed the test, carefully reinstall it in the mud pump. Make sure to connect all the pipes and fittings correctly. Tighten all the connections to prevent any leakage. After reinstalling the valve, start the mud pump and monitor its performance. Check for any abnormal noises or vibrations, which could indicate a problem with the valve installation.
8. Maintenance Tips to Prevent Future Damages
To prevent future damages to the mud pump valve, it's important to follow some maintenance tips. Regularly inspect the valve for signs of wear and tear. Keep the mud clean by using proper filtration systems. Contaminants in the mud can cause excessive wear on the valve components.
Lubricate the valve components as recommended by the manufacturer. This helps to reduce friction and wear. Also, avoid over - pressurizing the mud pump, as high pressure can cause damage to the valve.
In conclusion, repairing a damaged mud pump valve requires a systematic approach, from inspection to testing and reinstallation. As a mud pump supplier, we are committed to providing high - quality mud pumps and replacement parts. If you have any questions about mud pump valve repair or are interested in purchasing our mud pumps, such as BW1200/7 Mud Pump, BW600 Mud Pump, or BW160 Mud Pump, feel free to contact us for more information and to start a procurement discussion.
References
- Drilling Equipment Handbook: A comprehensive guide to drilling equipment, including mud pumps and their components.
- Manufacturer's manuals for mud pumps: These manuals provide detailed information about the design, operation, and maintenance of mud pumps.
