Product Description
The RC240Y pile machine, featuring innovative construction techniques and a specialized climbing mechanism, works well on challenging 45-degree slopes. It integrates various photovoltaic construction technologies, including helical pile drilling, auger hole drilling, and down-the-hole hammer piling for rock, making it versatile for diverse construction needs. Equipped with imported original hydraulic components, the machine ensures reliable performance and stability. The RC240Y is widely used in solar ground construction, power station development, and similar fields, providing dependable solutions for blast hole construction and other demanding projects.
Product Specifications
|
Impact frequeney(bpm) |
350-800 |
|
Impact(J) |
1300 |
|
Hydraulic ramming flow (L/min) |
50-110 |
|
Max ramming length (mm) |
6000 |
|
Oil pump |
40/40/32 |
|
Hydraulic system pressure (Mpa) |
25-30 |
|
Diesel engine power (KW) |
85 Yuchai 4 cylinders |
|
Drilling carriage Pitch angle |
120⁰ |
|
Drilling boom swing angle |
150⁰ |
|
Climb ability(º) |
30 |
|
Crawler Chassis width(mm) |
400 |
|
Dimension(L*W*H)(mm) |
6500*2300*2800 |
|
Weight(kg) |
6500 |
|
Walk speed(km/h) |
3 |
|
For rotary drilling |
|
|
Rotary head torque |
13000N.m |
|
Rotary speed |
180r/min |
|
Bore diameter(DTH hammer) |
90-300mm |
|
Bore depth |
20-100m |
|
Air consumption |
10-26m³/min |
|
Air pressure |
0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
|
Bore diameter(auger) |
Max 600mm |
|
Bore depth |
0-30m |
|
Rotation speed |
0-110r/min |
Product Features
The RC240Y pile machine is a leader in the field of solar engineering, with a wide range of impact frequencies and high-efficiency impact energy. Its hydraulic ramming system has an adjustable flow rate and a maximum ramming length of 6000 mm, which is suitable for deep construction. It is equipped with an 85kW four-cylinder Yuchai engine, providing strong power. The drill floor inclination angle and drill pipe swing angle are flexible and adaptable to complex terrain. The crawler chassis is stable, moderately sized and has a fast walking speed. The rotary drilling torque is 13000N·m, the DTH hammer drilling diameter is 90-300 mm, and the air consumption is 10-26 cubic meters per minute.

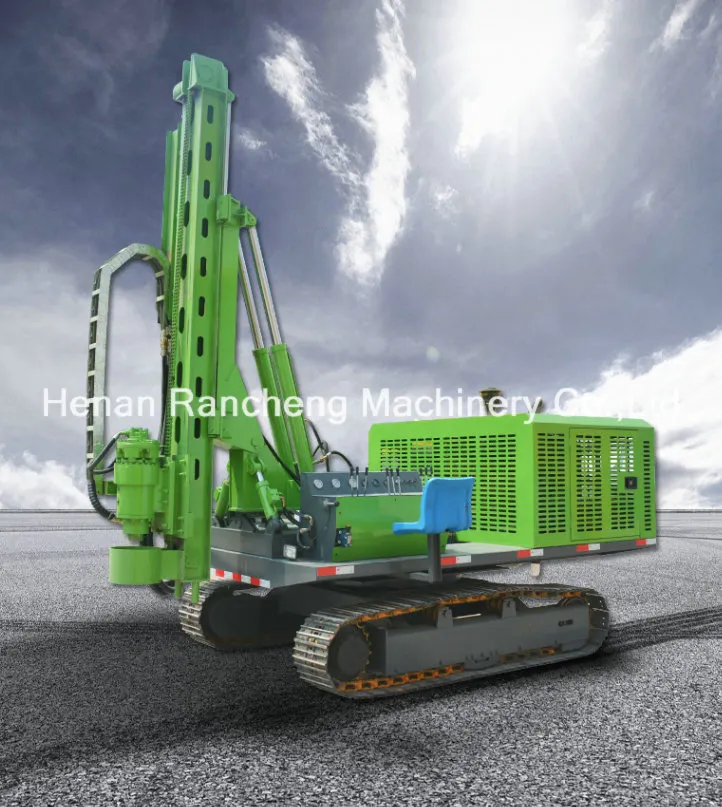

Application
The RC240Y pile machine is widely used in photovoltaic solar pile driving and solar power plant projects for the installation of solar piles, making it a crucial piece of equipment in the solar power generation field. It is highly efficient at drilling through rock for the installation of solar panels. Skilled operators are essential to monitor and adjust the rig during the drilling process, ensuring optimal performance and precise hole placement, which is key to the success of photovoltaic installations.
Packaging & Shipping
Delivery time: 10-15days
We use professional equipment to frame the boxes. We will arrange specially-assigned person to inspect every step. Ensure transportation safety.
Certificate
Our products have passed CE certification and ISO9001 quality management system certification, ensuring that they meet international standards in terms of safety, reliability and quality.
