Products Description

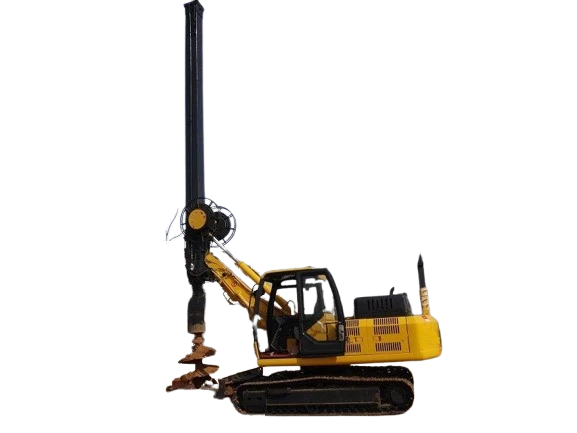

The RCQ-15C pile driver machine is a highly efficient rotary drilling machine designed for a variety of engineering projects. It has two drilling modes: self-weight and hydraulic cylinder pressure, enabling it to achieve rotary bored piles up to a depth of 15 meters. With a broad drilling diameter range of 500 to 1500 mm, it supports various drill tool configurations to meet diverse project requirements. This equipment is suitable for different soil conditions, including soil layers, clay, silt, and even certain gravelly and highly weathered rock formations. Suitable for applications such as building foundations, high-speed rail contact net supports, slope protection piles, and urban construction, it also serves well in new rural developments and power grid renovations as part of advancing urbanization projects.
The RCQ-15C pile driver machine is powered by a Cummins engine and an efficient, energy-saving hydraulic system, significantly reducing operating expenses. Equipped with a dual travel system, it offers strong mobility, enabling fast and convenient movement across sites. Its simple, user-friendly design requires only one to two operators for full control. Moreover, the fully mechanized piling process eliminates the need for manual descent, enhancing safety by reducing risks of collapses or air deficiencies, and ensuring worry-free construction. With the ability to rotate 360 degrees for seamless piling and drill up to 15 meters per hour, this machine greatly boosts project efficiency.
products parameters
|
Model |
RCQ-15C pile driver machine |
|
Working mode |
Hydraulic oil cylinder pressure |
|
Drilling diameter (mm) |
Φ500-Φ1500 |
|
Drilling depth (m) |
15 |
|
Dimension(mm) |
7500X2300X2950 |
|
The total weight(t) |
13.5 |
|
Powerhead torque(N.m) |
17000-22000 |
|
Rotary speed (r/min) |
30-50 |
|
Max lifting capacity (KN) |
150 |
|
Max stroke (m) |
11-22 |
|
Wire-line diameter (mm) |
16 |
|
Rotation angle ( °) |
360 |
|
Travelling speed (km/h) |
3-5 |
|
Max gradeability ( °) |
25 |
|
Diesel engine power (KW) |
110KW, Cummins engine |
|
Diesel engine rotary speed (r/min) |
2200 |
Products features
Powerful Driving Force: The power head works directly on the drill bit, ensuring consistent torque during piling and meeting the demands of deep and efficient drilling.
Wide Range of Geological Adaptability: The RCQ-15C pile driver machine is suitable for various geological conditions, including soil, clay, backfill, silt, pebbles, and gravel layers, enabling stable operations in complex terrains.
Efficient Hydraulic System: Equipped with a fully hydraulic crawler design, the pile driver machine adopts pressurized drilling with a maximum output torque of 150 kN.m, significantly enhancing power efficiency. It supports multiple drill tool specifications, achieving a drilling depth of up to 15 meters and a bore diameter range of 500-1500 mm.
Safety and Reliability: Using a new-generation rotary drive system with multi-gear control, adaptive technology, and a dual-buffer system, it significantly improves drilling efficiency and operational safety.
High Level of Automation: Intelligent controls and an advanced hydraulic system simplify operations, while the heavy-duty wide chassis provides stable support, ensuring efficient, safe, and stable performance.
High Cost-Effectiveness: With a low initial investment and fast returns, this machine is highly economical, offering broad applicability and delivering both economic and social benefits, making it a best choice for infrastructure and urbanization projects.
Packaging & Shipping
Delivery time: 10-15days
We use professional equipment to frame the boxes. We will arrange specially-assigned person to inspect every step. Ensure transportation safety.
application
RCQ-15C pile driver machine is widely used in high-speed rail trestle piles, sewage shield piles, photovoltaic power station foundation piles, electric grid construction, and landscaping projects.
Certificate
Our products have passed CE certification and ISO9001 quality management system certification, ensuring that they meet international standards in terms of safety, reliability and quality.
