Products Description

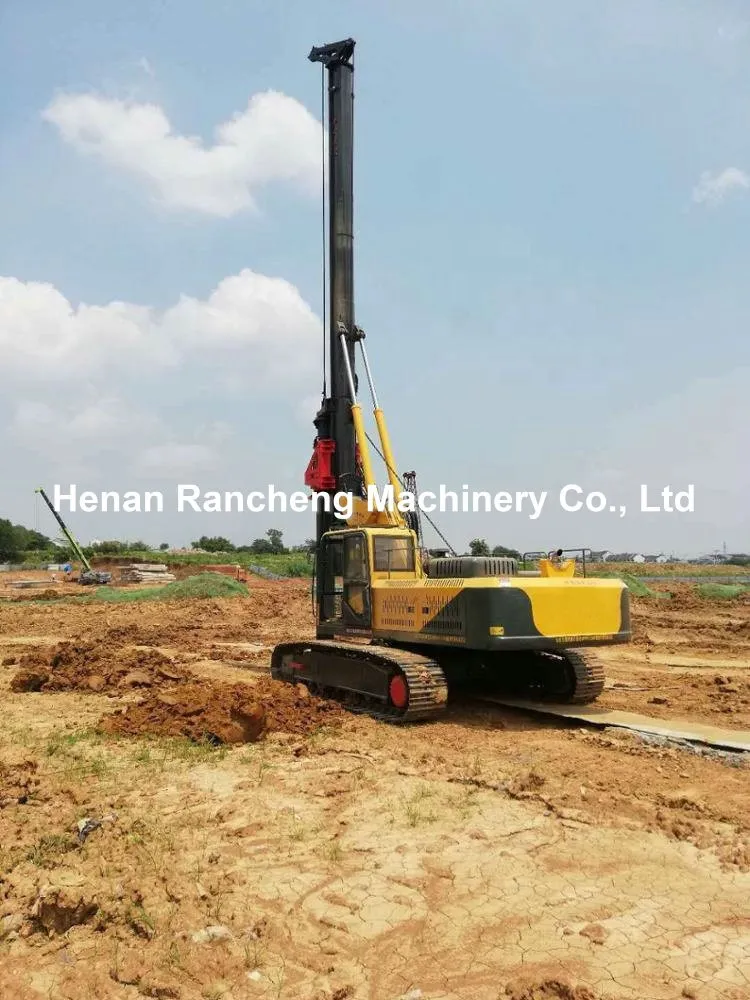

The RCQ550 Kelly Bar Rotary Drilling Machine is built for flexibility and efficiency in a wide range of foundation applications. With a compact structure and lightweight design, it supports quick relocation between sites and is well-suited for projects with tight schedules or limited space.
Combining low torque with high power output, the RCQ550 can drill large-diameter piles using a smaller machine footprint. Designed for pressurized drilling, it reaches depths of up to 50 meters with hole diameters from 500 to 1500 mm.
This rig supports cost-effective operation, fast deployment, and reduced downtime-making it a practical solution for foundation work in high-speed rail, urban infrastructure, and other demanding construction environments.
products parameters
|
Drilling diameter |
Φ500-Φ1600mm |
Drilling depth |
50m |
|
Diesel engine |
Cummins 190KW |
||
|
Powerhead torque |
160KN.m |
||
|
Rotary speed |
5-30RPM |
||
|
Pressurized oil cylinder max pressure |
160KN |
||
|
Pressurized oil cylinder max lifting force |
160KN |
||
|
Pressurized oil cylinder max Stroke |
3500mm |
||
|
Main winch max lifting force |
160KN |
||
|
Main winch max lifting speed |
60m/min |
||
|
Main winch rope diameter |
26mm |
||
|
Assisting winch max lifting force |
50KN |
||
|
Assisting winch max lifting speed |
60m/min |
||
|
Assisting winch rope diameter |
14mm |
||
|
Travel speed |
3km/h |
||
|
Max climbing gradient |
15° |
||
|
Hydraulic system pressure |
32Mpa |
Working radius |
5.2m |
|
Machine dimension |
14X3.2X3.9m |
Weight |
48KGS |
Products features
Superior Performance and Efficiency: With fast lifting speeds, high lifting capacity, and 360-degree rotational capability, it enhances operational flexibility.
Precise Hydraulic Control System: The full hydraulic control system ensures the verticality, hole position, depth, and sediment thickness.
Powerful Drive Force: The power head acts directly on the drill bit, maintaining torque throughout the piling process.
Stable and Clean Drilling: The kelly bar rotary drilling machine creates stable hole walls, ensuring thorough cleaning post-drilling and accelerating the construction process.
Packaging & Shipping
Delivery time: 10-15days
We use professional equipment to frame the boxes. We will arrange specially-assigned person to inspect every step. Ensure transportation safety.
application
The RCQ550 rotary drilling machine has a maximum output torque of 160 kN·m and a drilling depth capability of up to 50 meters. Its newly designed main winch provides an enhanced line speed of 60 m3/min and a strong line pull force of 160 kN, optimizing operational efficiency.
The RCQ550 rotary drilling rig is versatile and suitable for a wide range of applications, including battered piles, civil construction, rural development, municipal projects, and more. It is used for high-speed railway trestle piles, sewage shield piles, photovoltaic power station foundation piles, power grids, and landscaping projects, making it a reliable choice for demanding construction environments.
Certificate
Our products have passed CE certification and ISO9001 quality management system certification, ensuring that they meet international standards in terms of safety, reliability and quality.
What is a kelly bar?
The Kelly bar is a long, telescopic tubular structure that connects to the rotary drilling rig's turntable, crucial for transferring drilling torque from the rig's power source to the drilling tools. This connection is essential in maintaining consistent force and stability across drilling operations, ensuring smooth, reliable performance throughout the project.
As the backbone of drilling, Kelly bars come in various lengths, diameters, and configurations to accommodate different drilling depths, soil compositions, and rig capacities. Selecting the appropriate Kelly bar is critical for efficient and successful drilling, particularly in challenging soil and foundation conditions.
Our RCQ series rotary drilling rigs, with depths ranging from 15 to 50 meters, are suitable for diverse subsurface conditions. The kelly bar rotary drilling machine is widely used in sand, clay, and silt soils for projects involving bored piles, continuous walls, foundation reinforcement, and other foundational construction tasks.
