Product Description

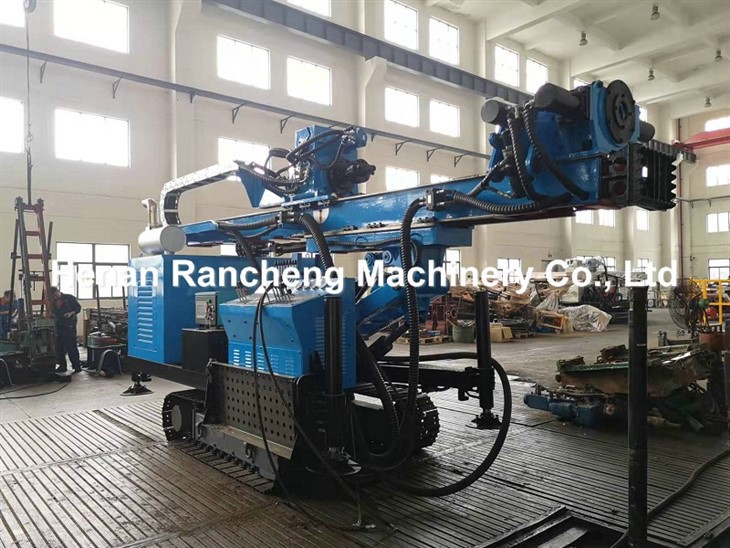

The RCF150Q DTH machine adopts a fully hydraulic power system and a crawler chassis, demonstrating excellent flexibility and versatility. It can flexibly handle a variety of drilling processes, whether vertical or inclined drilling, and can be completed efficiently. Its strong adaptability enables it to effectively deal with various formation challenges, such as loose overburden, cobblestone layer and broken bedrock. Therefore, the RCF150Q DTH machine has wide applicability and can meet various drilling needs. Whether in terms of construction efficiency or drilling quality, RCF150Q DTH machine can perform well, bringing convenience and efficiency to users.
Product Specifications
|
Model |
RCF150Q DTH machine |
|
Hole Depth (m) |
150 |
|
Hole Diameter (mm) |
Ф110～300 |
|
The dip angle of pipe (mm) |
0~90° |
|
Horizontal hole height(m) |
1.85~2.8 |
|
Output speed (rpm) |
25/50;40/80;45/90; 75/150 |
|
Maximum output torque (Nm) |
8000 |
|
Give progress (mm) |
3500 |
|
Maximum feeding / pulling force (kN) |
40/60 |
|
Power machine model |
Engine Cummins 4BT3.9-C100 |
|
Electric motor Y250M-4 + Y180L-4 |
|
|
Input power |
74KW/2200r/min |
|
55+22KW/1470+1470rpm |
|
|
Chassis Model |
PD135SS |
|
Host size (m) |
6300*2000*2300 |
|
Rig mass (kg) |
6500 |
Product Features
The RCF150Q DTH machine is a fully hydraulic drilling equipment that is powerful and versatile and can perform drilling operations efficiently. It is available in different models according to customer needs. The power head supports mechanical and hydraulic operations and is suitable for a variety of drilling techniques. The telescopic mechanism protects the drilling tools and can adjust the drilling angle. The automatic lock and crawler chassis steering device improve the convenience of operation. The use of well-known brand components ensures the stability and durability of the equipment. The special mechanism of RCF150Q DTH machine enables it to adapt to different construction needs, such as deep foundation pit anchoring and jet spraying construction, making it very suitable for complex projects.
About Transportation
Delivery time: 10-15days
Field Work
Certificate
Henan Rancheng Machinery Co.,Ltd
We are a professional drilling rig supplier in China, that is dedicated to designing and manufacturing water well drilling rigs, rotary drilling rigs, anchor drilling rigs, DTH drilling rigs, solar pile drivers, mud pumps, air compressors, and drilling tools, etc. We have advanced technology, Modern equipment, a first-class team, and rich experience, and our products passed ISO9001, CE, etc certifications, which have been exported to around 200 countries and areas in the world.
Pursuing the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
01
High Quality
We strictly follow the requirements of the ISO9001 international quality management system in the industry to ensure that the after-sales service provided to customers meets high-quality standards.
02
Quick response
We promise to respond within 24 hours after receiving customer after-sales service requests and solve customer problems in the shortest possible time.
03
Professional Team
Our after-sales service team is composed of a group of experienced and technically capable professionals who understand the product and have many years of service experience. They can answer and solve various technical problems.
04
Custom Service
We will develop personalized solutions for each customer's problem to ensure that the solutions match your specific needs.
FAQ
Q: Why choose us?
A: Rancheng Machinery is a very professional drilling rig supplier in China. We have rich experience in this industry for 11 years. Now our products are serving around the world. We have high-quality drilling rigs, professional and efficient services, competitive prices and fast delivery.
Q: Do you offer any custom designs?
A: Yes, we have our own trade factory. We provide our customers with customized service. We can produce a superior product for you by your designs.
Q: How to order?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a proforma invoice for you to confirm the order details;
Step 3, we confirmed everything, then arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
Q: When will make delivery ?
A: About 10-15 work days after receipt of the payment.
Q: After-sales service
A: One year warranty for all kinds of products;
Q: Can we visit your factory?
A: Yes, we warmly welcome you to visit our factory.
