Product Description

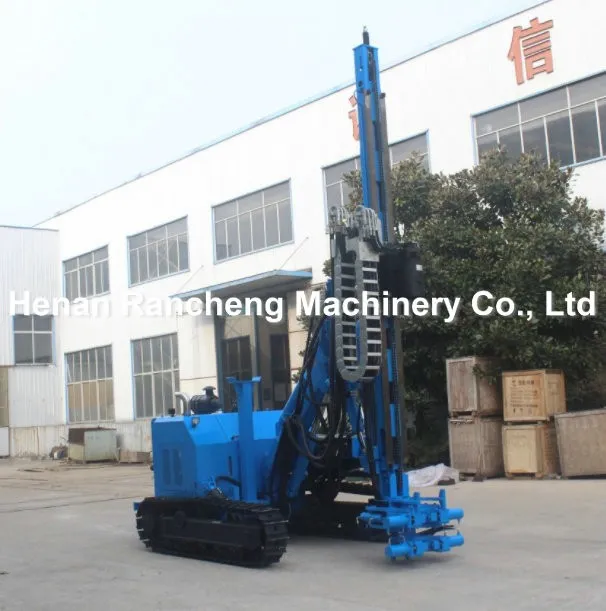

The RC168Y DTH boring machine is a fully hydraulic anchoring and engineering drilling rig designed for efficient performance in complex geological conditions. It uses a reliable hydraulic system to drive all machine movements, while the down-the-hole hammer operates with compressed air, significantly reducing air compressor costs. The machine delivers stable torque output during blasting hole and anchoring operations through its new rotary power head, ensuring consistent drilling performance.
Powered by a 93 kW Cummins diesel engine, the RC168Y provides high torque and efficient fuel consumption. Its crawler-type chassis offers excellent mobility and climbing capability, making it well-suited for rugged terrain and field operations. The hydraulic quick anchoring system and oil cooling unit enhance operational continuity and extend equipment lifespan. The RC168Y combines efficiency, safety, and convenience, providing reliable drilling performance for a wide range of engineering projects.
Product Specifications
|
Bore diameter(mm) |
100-300 |
|
Bore depth(m) |
150 |
|
Rotation speed(rpm) |
80 |
|
Rotary Torque(N.m) |
3600 |
|
Mast compensation(mm) |
1200 |
|
Propel speed(M/s) |
0.6 |
|
Maximum propel(kn) |
12 |
|
Maximum pull(kn) |
26 |
|
Mast length(mm) |
5350 |
|
Once promotion(mm) |
3200 |
|
Walk speed(km/h) |
3 |
|
Chassis floating(º) |
12 |
|
Chassis height(mm) |
310 |
|
Climb ability(º) |
35 |
|
Diesel engine |
Cummins 93KW |
|
Transport Dimension(L*W*H)(mm) |
5920*2280*2480 |
|
Weight(kg) |
7200 |
Features of RC168Y DTH Boring Machine
1. Hydraulic System Drive: All core movements are controlled by a hydraulic system, providing smooth, efficient, and reliable drilling operations.
2. Cost-Saving Operation: Only the DTH hammer uses air power, reducing air compressor size and energy consumption.
3. High Torque Output: The rotary power head maintains strong rotational torque, suitable for anchoring and blast-hole drilling.
4. Dual Hydraulic Chucks: Improve drilling stability and enhance clamping force during high-load operations.
5. Multi-Speed Rotary Head: Offers flexible speed options for different rock formations and hole diameters (100–300 mm).
6. Convenient Transport: Compact structure, strong mobility, and climbing capability make it ideal for uneven or mountainous job sites.
7. Efficient Cooling System: The integrated oil cooler ensures long-term hydraulic stability during continuous operation.
8. Operator-Friendly Design: Equipped with multi-way valves, remote control support, track tensioners, and LED work lights for safe and convenient operation even at night.
9. Easy Maintenance: Simplified structure and modular components reduce downtime and improve service efficiency.
Application
The RC168Y DTH boring machine is widely used in geotechnical engineering, mining, and infrastructure projects. It is suitable for slope stabilization, foundation reinforcement, tunnel support, and anchoring in bridges, dams, highways, and hydropower stations. The machine also performs efficiently in geological exploration and environmental protection projects, providing reliable drilling and anchoring performance across diverse working conditions.
