Product Description

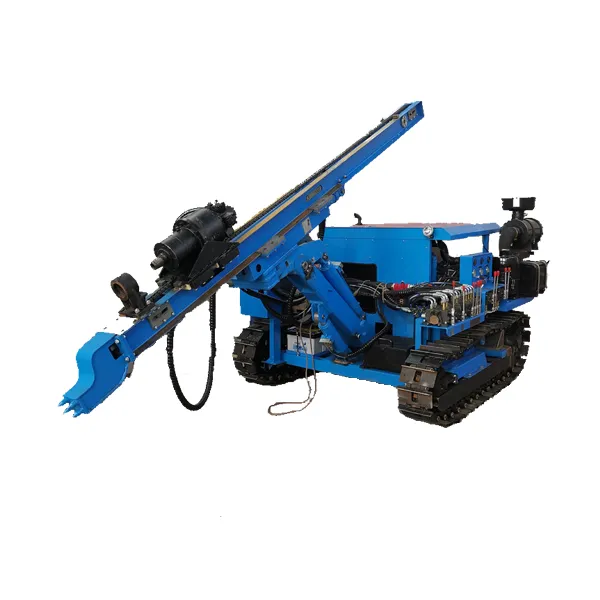

RC100YA2 hydraulic DTH drilling rig is remarkable for its excellent hydraulic technology and high-efficiency energy-saving design. This drilling rig not only stands out in drilling operations with its low air consumption and powerful torque, but its compact and stable structure also ensures the stability and accuracy of the operation process. It is particularly worth mentioning that its configuration of dual-motor turret slewing mechanism and high-efficiency air compressor system greatly improves the operating efficiency and reliability of the drilling rig, making it ideal for handling open-pit blasting drilling and large-diameter drilling. choose. In engineering fields such as open-pit mining, power station construction, and road construction, the RC100YA2 DTH drilling rig has demonstrated strong drilling capabilities and excellent performance. It can adapt to rocks of various hardnesses and provide solid support and services for engineering construction.
Product Specifications of RC100YA2 DTH Drilling Rig
|
Bore diameter(mm) |
90-140 |
|
Bore depth(m) |
30 |
|
Walk speed(km/h) |
2 |
|
Once promotion(mm) |
2000 |
|
Grade ability (°) |
30 |
|
Air pressure(Mpa) |
0.7-1.4 |
|
Chassis ground clearance(mm) |
260 |
|
Air consumption(m³/min) |
7-15 |
|
Skid pitch(°) |
Up and down100 |
|
Sliding tilt swing (°) |
left35,right10 |
|
For rock(F) |
6-20 |
|
Skid compensation(mm) |
900 |
|
Dimension(L*W*H)(mm) |
4300*2130*2160 |
|
Weight(Kg) |
2900 |
|
Diesel engine power |
33KW Yuchai |
Product Features
The RC100YA2 DTH drilling rig has outstanding features. The hydraulic motor achieves low speed and high torque, ensuring working stability and reliability. Plunger propulsion technology ensures the stability of drilling performance. Dual air filters maintain air quality and extend engine life. The multi-valve control system improves operational convenience, and automatic monitoring enhances reliability. The safety of night operations is guaranteed by track tensioning devices and spotlights. Compact structure, safe operation, suitable for rugged areas, with flexible movement and strong climbing ability, and convenient hole shifting operation.
