Products Description

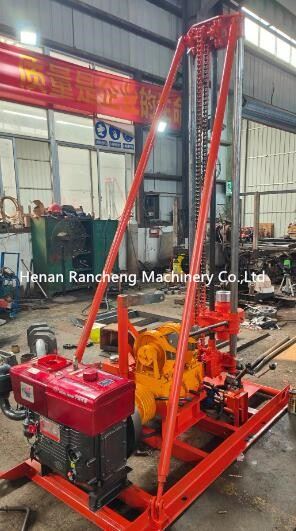

RCA150 rock core drilling equipment is an efficient and easy-to-operate hydraulic drill designed for geological exploration and sampling operations. The use of hydraulic feed technology greatly improves the speed and efficiency of drilling while ensuring the stability of operation. Its compact structural design allows the equipment to be quickly assembled and disassembled, making it easy to transport and carry and is particularly suitable for operations in sites with limited space or difficult access. Compared with similar products on the market, RCA150 rock core drilling equipment is lighter and more portable, and each component can be easily disassembled, reducing manpower consumption during transportation.
The RCA150 drilling rig can work in various strata, including complex geological environments such as soft rock and hard rock. Its low-noise operation characteristics make it less likely to cause interference in operations in environmentally sensitive areas, improving the comfort and safety of construction. In addition, the high reliability and durability of the equipment ensure long-term stable operation and reduce maintenance and downtime.
products parameters
|
Main technical parameters |
|||||
|
Drilling capacity |
Drilling diameter (mm) |
75~130 |
Power part |
Power model |
Changchai195 |
|
Drilling depth (m) |
150(75mm) |
Rated power kW |
10.6 |
||
|
Rotatory parameters |
Maximum torque KN.m |
10 |
Rotational speed r/min |
2200 |
|
|
Maximum feed force KN |
15 |
Matching drill pipe |
Drill pipe diameter mm |
Ø42/Ø50 |
|
|
Maximum lifting force KN |
25 |
Drill pipe length m |
1.5 |
||
|
Feed stroke (mm) |
1800 |
Hoist single rope lifting force KN |
11 |
||
|
Rotational speed r/min |
Low speed: 142, 302, 716 High-speed: 475, 765, 960 |
Dimensions |
Shipping status mm Working status mm |
1950*1200*2550 1950*1200*4250 |
|
|
Matching mud pump |
BW160 single cylinder pump |
Whole machine weight(including power) kg |
750 |
||
Products features
Direct drive casing/core tube drilling: When drilling holes, RCA150 rock core drilling equipment adopts direct drive mode, and the effective stroke of the drill rotator can reach 1.8 meters, which greatly improves the drilling efficiency and reduces the operation time.
Multiple drilling methods to adapt to complex formations: The rock core drilling equipment uses both spiral drills and in-tube impact drills to cope with different complex formations, significantly improving the drilling efficiency under various geological conditions and ensuring smooth operation.
Simple structure, easy to disassemble and maintain: The whole machine design is very simple, easy to disassemble, maintain and transport, reducing the equipment maintenance cost, facilitating rapid adjustment and movement on site, and suitable for drilling tasks with frequent transfers.
Packaging & Shipping
About 10-15 work days after receipt of the payment.
application
Rock Core Drilling Equipment is applied in engineering geological surveys, hydrology, small-size water well drilling, filling, and many other fields.
