General Description

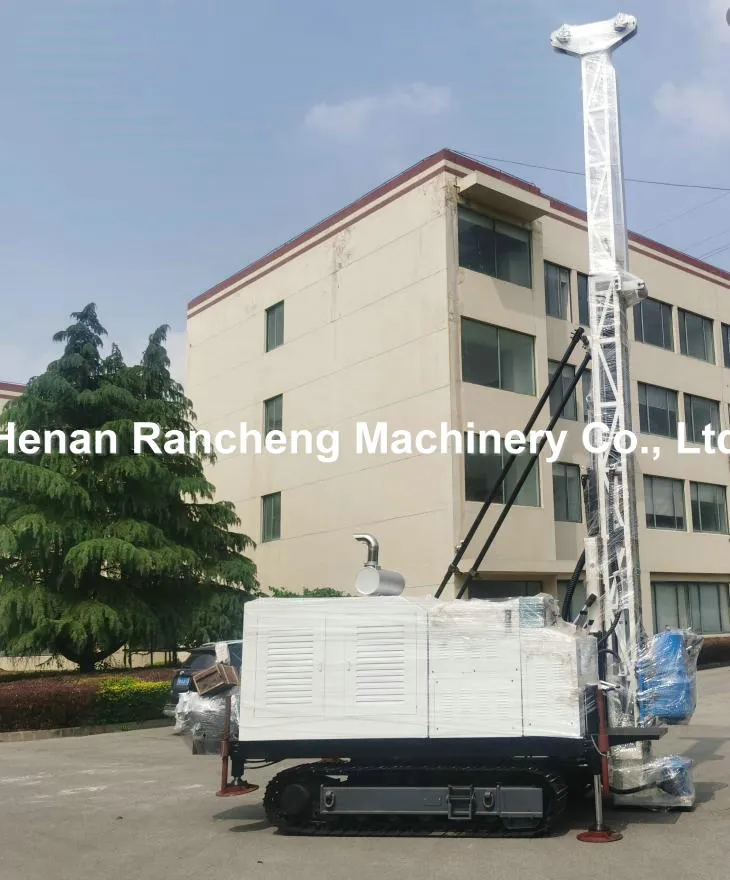

The RCSF600C hydraulic coring machine is a fully hydraulic power-head drilling rig designed for diamond drilling applications. It is suitable for exploring both metallic and non-metallic solid mineral deposits. Beyond alloy drilling, the rig is capable of precise vertical and inclined drilling operations. It is also adaptable to hydrogeology, oil and gas exploration, and complex engineering projects, such as dam grouting and tunnel ventilation or drainage. The RCSF600C is a versatile core drilling rig suitable for a variety of tasks, including small-diameter diamond drilling, large alloy drilling, and civil engineering drilling projects.
Technical Parameters
|
Model |
RCSF600C hydraulic coring machine |
|
Drilling diameter /Hole Depth (m) |
BQ 600 m / NQ 500 m / HQ 300 m |
|
Drilling hole angle |
0~90° |
|
Rotary speed/torque |
114～152RPM ;245～327RPM ;374～500RPM ;800～1100RPM Torque Max torque：3000N.m |
|
Feeding process |
3500mm |
|
Feeding force |
40KN |
|
Lifting force |
58KN |
|
Main winch lifting force |
55KN |
|
lifting speed |
27m/min |
|
Wireline winch lifting force |
12KN |
|
Lifting speed |
120m/min |
|
Diesel engine |
Engine Cummins 6BTA5.9-C180 |
|
Input power |
132KW/2200r/min |
|
Host size (m) |
6300*2000*2300 |
|
Rig mass (kg) |
7000 |
Significant Advantages
- Flexible Drilling Control: Equipped with high-speed multi-gear and high-torque low-speed options, enabling efficient and adaptable drilling.
- Long-Stroke Design: Reduces reversals and the risk of core clogging, improving drilling efficiency.
- Lightweight and Centralized Operation: Simplifies handling and reduces labor intensity.

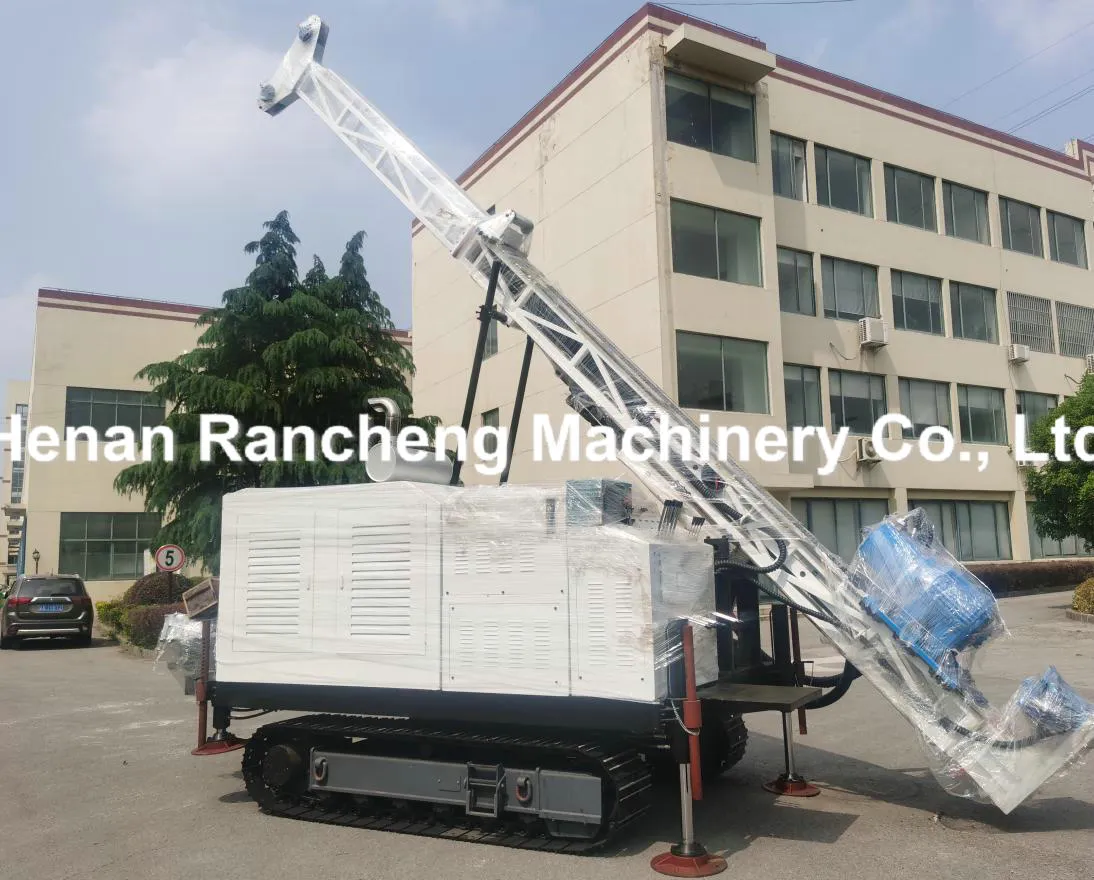

- Tilt Drilling Capability: Allows angled drilling without the need for a tilt tower.
- Simultaneous Lifting: Can lift two drill pipes at the same time, improving operational speed.
- Quick Setup and Mobility: Easy installation and movement without a dedicated drilling tower.
- Multiple Mounting Options: Can be configured on skid-steer, crawler, or trailer platforms according to operational needs.
Application
The RCSF600C hydraulic coring machine is a top-drive rotary head drilling rig designed for hydraulic operation. It supports diamond core drilling with carbide bits and can handle both vertical and inclined boreholes. The rig is also suitable for engineering applications, including hydrology wells, oil and gas field investigations, dam and dike grouting, as well as tunnel ventilation and drainage projects.
Packaging & Shipping
Delivery time: 10-15days
We use professional equipment to frame the boxes. We will arrange specially-assigned person to inspect every step. Ensure transportation safety.
Certificate
Our products have passed CE certification and ISO9001 quality management system certification, ensuring that they meet international standards in terms of safety, reliability and quality.
