Products Description

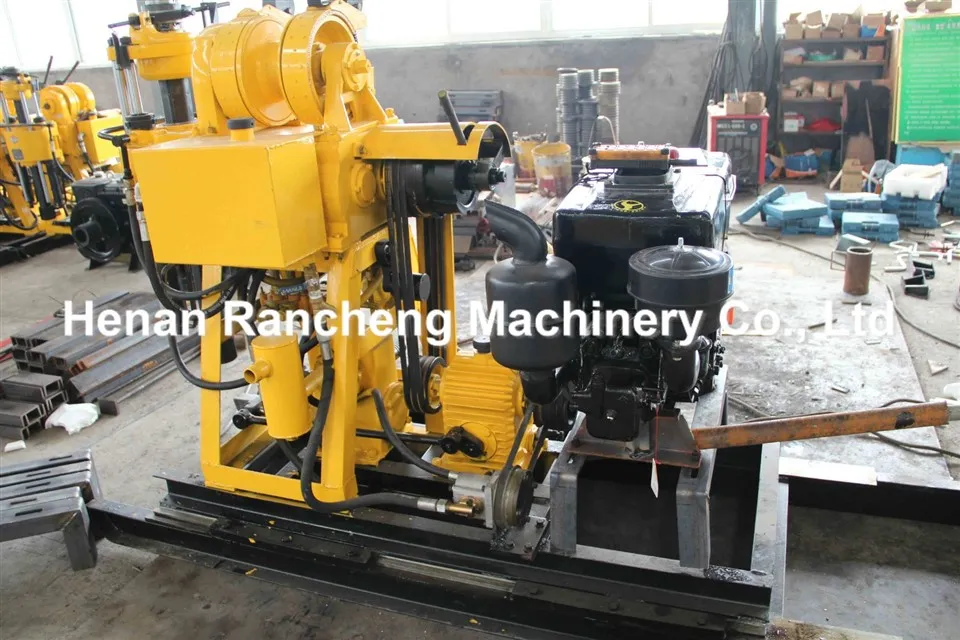

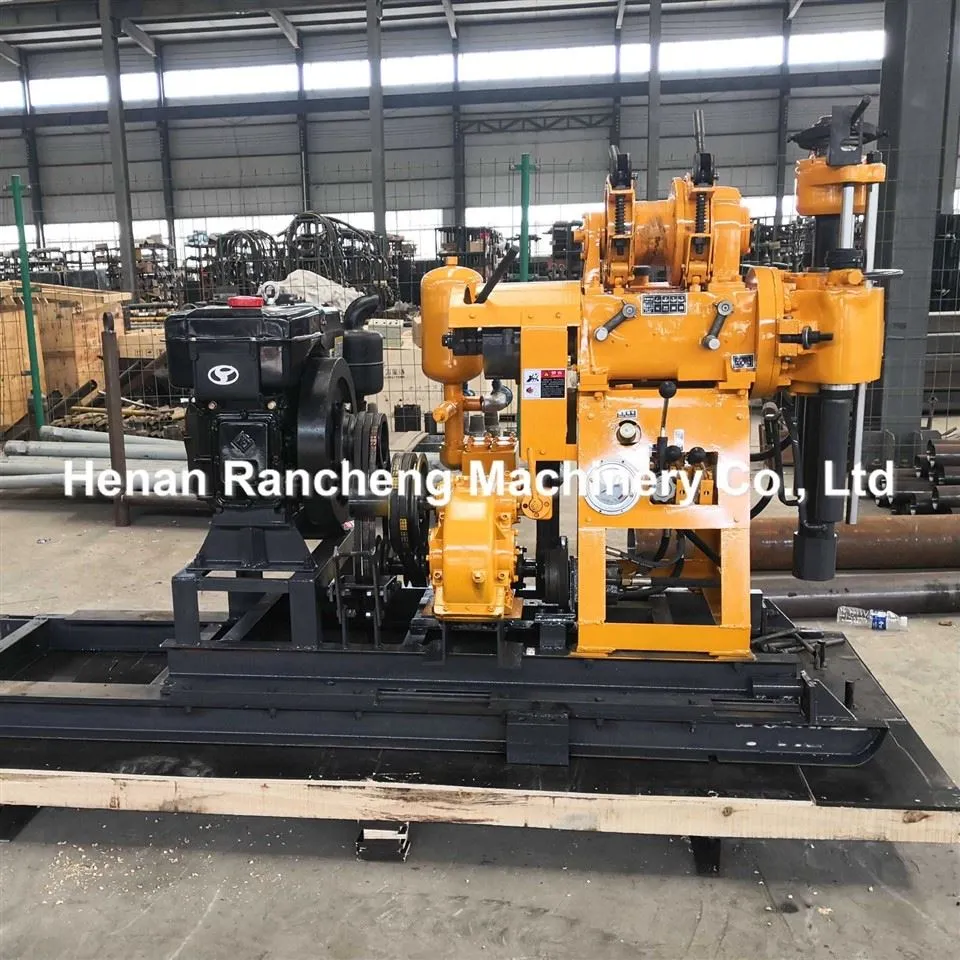

The RCJ130W/RCJ200W borewell tractor is a highly mobile and versatile drilling rig that can be easily towed by a two-wheel vehicle, making it suitable for operations in remote or hard-to-reach areas. It is suitable for both water well drilling and diamond core drilling, offering high value for investment.
The rig is equipped with a 1.53*59 high-strength drilling rod that delivers high torque transmission, ensuring reliable performance in complex and demanding geological conditions.
A key feature of this model is its patented taper clutch, which provides strong torque transmission while remaining easy to operate and maintenance-free, greatly enhancing efficiency and reducing downtime.
The winch system incorporates a large-module planetary gearbox and a reinforced support frame, significantly improving lifting and braking capabilities. The vertical spindle is supported by four sets of bearings, ensuring high stability and structural integrity, even when drilling through gravel layers and mixed formations.
If you are looking for a cost-effective, easy-to-move solution for both well drilling and core sampling, this borewell tractor is a smart and practical choice.
products parameters
|
Tech parameter |
Model |
RCJ130W |
RCJ200W |
|
Drilling depth(m) |
130 |
200 |
|
|
Open hole dia(mm) |
220 |
325 |
|
|
End hole dia(mm) |
75 |
75 |
|
|
Drill rod dia(mm) |
42-60 |
42-60 |
|
|
Drill angle |
90-75 |
90-75 |
|
|
Matching power(KW) |
13.2 |
14.7 |
|
|
Dimension(m) |
2.4*0.8*1.4 |
2.7*0.9*1.5 |
|
|
Spindle |
Speed(r/min) |
142/285/570 |
64/128/287/557 |
|
Stroke(mm) |
450 |
450 |
|
|
Winch |
Max pull force(kg) |
2000 |
2500 |
|
Pull speed(m/s) |
0.41-1.64 |
0.12-0.95 |
|
|
Rope dia(mm) |
9.3 |
/ |
|
|
Roll capacity(m) |
27 |
35 |
|
|
Drill Mast |
Rated load(Ton) |
18 |
18 |
|
Height(m) |
6.5 |
6.5 |
|
|
Mud Pump |
Flow(L/min) |
95 |
145 |
|
Max Pressure(MPa) |
1.2 |
2 |
|
|
Times/min |
93 |
93 |
|
|
Inlet hose |
Dia(mm) |
51 |
51 |
|
Outlet hose |
Dia(mm) |
32 |
38 |
Products features
1. The borewell tractor features a hydraulic automatic feeding system that increases drilling efficiency while reducing operator fatigue.
2. A ball-type clamping device is used instead of a traditional chuck, allowing the drill rod to be retracted in reverse without shutting down the machine. This design is user-friendly, safe, and highly reliable.
3. A downhole pressure gauge is included to help monitor and control borehole conditions in real time.
4. With its compact structure, centralized control panel, small operational footprint, lightweight design, and easy disassembly, the rig is highly portable and well-suited for both flat terrain and mountainous regions.
Packaging & Shipping
Delivery time: 10-15days
We use professional equipment to frame the boxes. We will arrange a specially-assigned person to inspect every step. Ensure transportation safety.
application
The RCJ130W/RCJ200W borewell tractor combines mobility, durability, and multi-functionality, making it a first choice for diverse drilling needs across various industries. Its compact design and robust performance enable efficient operation in both urban construction sites and challenging terrains.
This versatile rig is widely used for general geological exploration related to railways, highways, bridges, dams, and high-rise building foundations. It is also effective for geological core drilling, small-diameter grouting and blasting holes, residential water wells, and geothermal HVAC well drilling.
Certificate
Our products have passed CE certification and ISO9001 quality management system certification, ensuring that they meet international standards in terms of safety, reliability and quality.
Our Service
Before-sale services
1) 24 Hours online service, quickly reply to E-mail and online ask. Guide customers to choose the best applicable machine type.
2) Professionally and patiently introduction, provide the advanced, energy-saving, and practical technological process.
Sale services
1) complete parts safety stock for all machine series. Test every machine before delivery to insure good performance of the machine.
2) In accordance with the agreements stipulated in thecontract.
After-sale services
1) According to the special requirements of customers,our company can ask professional engineers to guide with device installation online, debugging, and training operators until customers are fully satisfied.
2) The quality guarantee period for machines is one year except for the wearing parts and human damage factor.
