Products Description

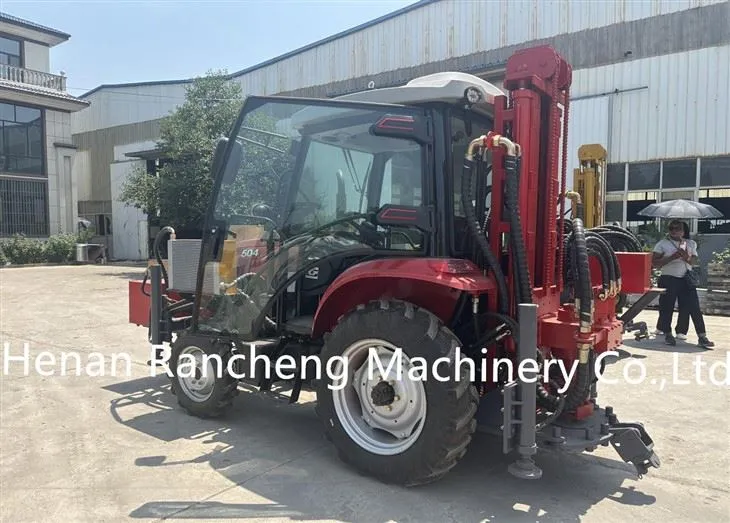

RCF260WT tractor mounted water well drilling rig is compact in structure and convenient to carry. It adopts full hydraulic drive and has low failure rate.The tower assembly has a hydraulic compensation mechanism.When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.
products parameters
|
Model |
RCF260WT tractor mounted water well drilling rig |
|
Weight (t) |
4.5T |
|
Hole Diameter (mm) |
140 - 254 |
|
Depth (m) |
260 |
|
Feed Stroke (mm) |
2000 |
|
Travelling Speed (km/h) |
30 |
|
Climbing Angle |
25 Degree |
|
Tractor Horse Power (hp) |
50 |
|
Air Pressure (Mpa) |
1.7 - 2.5 |
|
Air Consumption (m^3/min) |
17 - 31 |
|
Rod Diameter (mm) |
76 & 89 |
|
Rod Length (mm) |
2000 |
|
Lifting Force (t) |
12 |
|
Rotation Speed (rpm) |
45 -65 |
|
Output Torque (n.m) |
5000 -5500 |
|
Dimension (mm) |
4000*1700*2700 |
Products features
RCF260WT tractor mounted water well drilling rig is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate.The tower assembly has a hydraulic compensation mechanism.When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.
01

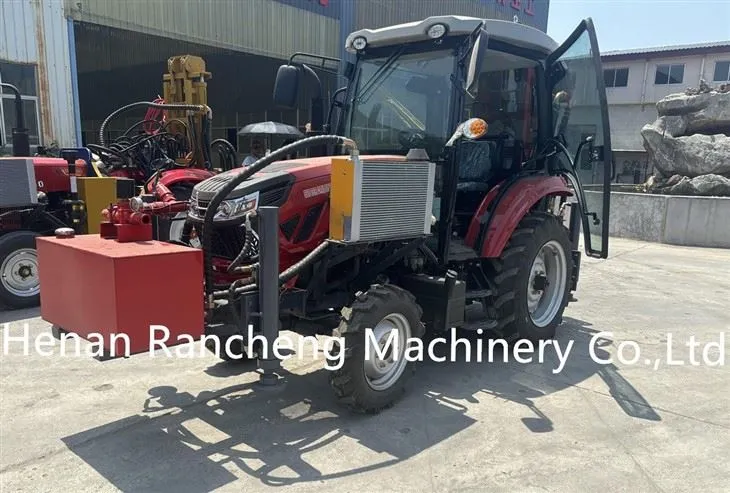

Integration of tractor & rig
The integration of drilling rig and tractor, which also tows the air compressor and uses a three-wheeled vehicle for drill pipe loading, offers cost-effective and flexible operation.
02
Fuel efficient
It can drill 260m with the power of the tractor's own diesel engine 50HP. And opening the hydraulic power is enough to lift the rod.
03

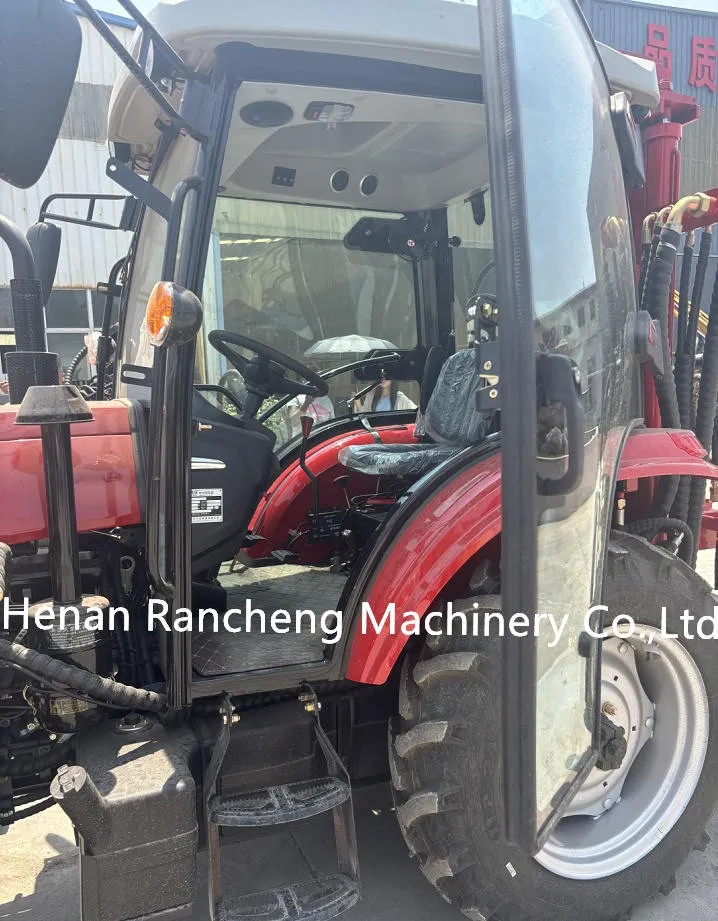

Keyboard operation & wireless Control
The machine uses mechatronics technology with a push-button keyboard for simple, flexible operation, allowing the operator to freely choose the workstation position.
04
Simultaneous casing drilling
The tractor mounted water well drilling rig can simultaneously handle casing while drilling and is equipped with a quick connection plug.
application
The RCF260WT tractor mounted water well drilling rig is primarily used for geothermal drilling, farm irrigation, house yards, gardens, and water well drilling. It is also suitable for small building piling, such as for farmhouses or factories, thanks to its versatile drilling capabilities. The machine can drill various diameters, making it adaptable to different project requirements. With its compact and flexible design, the RCF260WT can easily maneuver in tight spaces and challenging terrains.
