Products Description

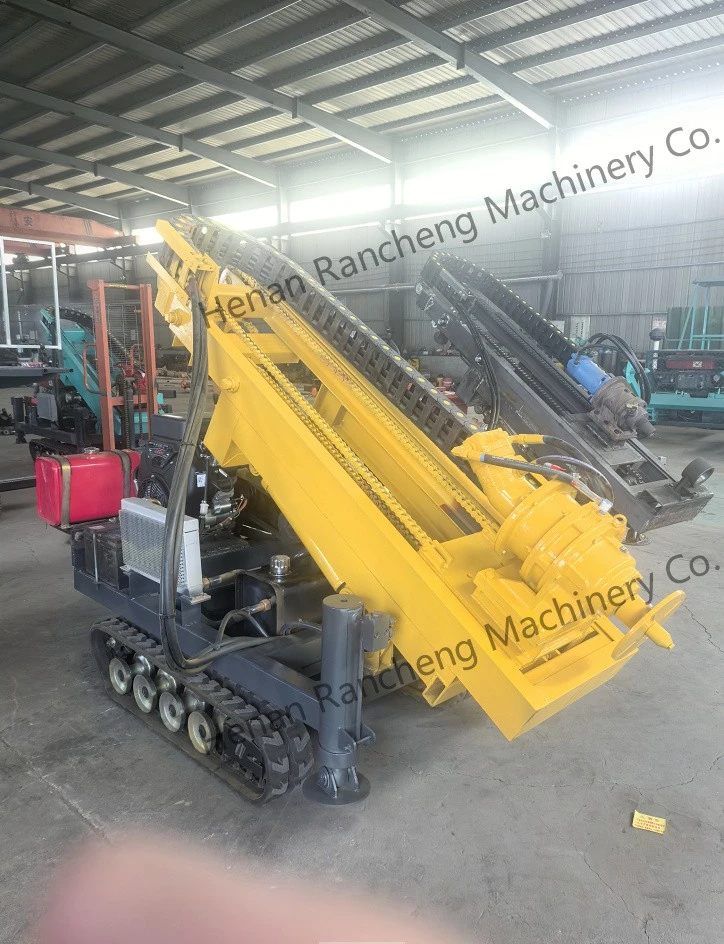

The Mini Crawler Guardrail Pile Driver RCKM-30S is a compact foundation machine designed for solar piling, guardrail installation, and small-diameter pile drilling. With multiple drilling modes, including solar screw pile drilling, auger drilling, and DTH drilling, it adapts easily to different field construction requirements.
Powered by a 28HP gasoline engine and a hydraulic-mechanical transmission system, the machine provides stable power output, smooth operation, and flexible pile driving angles. This design improves drilling efficiency while reducing manual labor during construction.
The crawler chassis is driven by a hydraulic travel motor, giving the Mini Crawler Guardrail Pile Driver strong mobility on uneven ground. It can work effectively on soft soil, slopes, farmland, and other complex terrains where larger piling equipment cannot easily operate.
The drilling frame is manufactured with thickened steel plates and reinforced through secondary welding technology. This structure enhances durability and ensures stability during pile driving operations in demanding job sites.
The machine is equipped with a high-performance hydraulic hammer, which generates controlled impact force to drive piles efficiently into the ground. In solar foundation projects, the RCKM-30S can quickly install photovoltaic support piles with high accuracy. Under standard soil conditions, piling efficiency can improve by about 40–60% compared with traditional manual or mechanical methods.
Technical Parameter
|
Main Technical Parameters |
|
|
Model: |
RCKM-30S rubber crawler mounted mini pile driver |
|
Rig weight: |
1.2t |
|
Dimensions (L×W×H): |
2300*1100*2300mm |
|
Engine power: |
28HP gasoline engine |
|
Rotary head torque |
3200N.m |
|
Hydraulic oil pump |
Single pump |
|
hydraulic loading system |
Cylinder chain pressure |
|
Hydraulic working pressure |
20Mpa |
|
Way of walking |
Crawler gearbox walking |
|
Walking speed: |
7-15km/h |
|
cooling system |
Hydraulic cooler |
|
Carriage travel |
2.8m |
|
Piling height |
1-3m |
|
Borehole diameter |
50-300mm |
|
Borehole depth : |
1-30m |
|
Air consumption |
6m3/min |
|
Adapt to rock types |
Medium hard rock ,F=8-12 |
|
Climbing ability: |
35° |
|
Hydraulic legs |
2 |
Certificate
Our products have passed CE certification and ISO9001 quality management system certification, ensuring that they meet international standards in terms of safety, reliability and quality.
Who is it for?
The RCKM-30S Mini Crawler Guardrail Pile Driver is suitable for a variety of foundation construction projects that require mobility, flexibility, and reliable performance.
It is commonly used in solar photovoltaic power station construction, roadside guardrail installation, rural infrastructure development, and small civil engineering projects. The compact crawler design allows the machine to access narrow construction sites and remote areas with limited transportation conditions.
The equipment performs well in different ground conditions such as soil, clay, sand layers, fill ground, silt, and strata containing small gravel. This versatility makes it a practical solution for contractors who need a mobile piling machine for multiple job sites.
Who Uses This Machine
The Mini Crawler Guardrail Pile Driver is designed for users who need an efficient and flexible piling solution without the cost of large foundation equipment.
It is widely used by solar project contractors installing distributed photovoltaic systems, local construction teams working on municipal or rural infrastructure, and independent contractors handling guardrail or small piling projects.
With its compact structure and crawler mobility, the RCKM-30S also suits engineering teams working in remote locations where transportation and on-site space are limited.
