Products Description

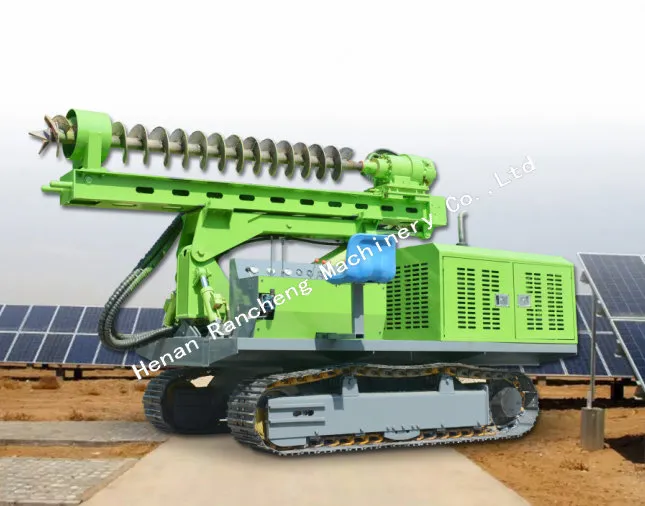

The RC240Y bored pile machine is advanced drilling equipment specifically designed for the foundation construction of photovoltaic power stations. It plays a crucial role in the installation of photovoltaic brackets and the secure fixing of components. The machine push the drill bit to excavate soil and rock layers, forming precise boreholes. To adapt to various geological conditions, the RC240Y solar pile driver allows the replacement of different types of drill bits, ensuring efficient and stable drilling across diverse soil and rock environments.
The RC240Y bored pile machine also offers a range of customizable features to meet specialized construction requirements. The power head can be swapped for different drilling needs, and the machine can be equipped with an impactor to deal with hard rock formations. Its high and low leg design, combined with a 360° rotating wheel, ensures better maneuverability in complex construction environments. The RC240Y solar piling rig provides precise adjustments for aperture and depth, guaranteeing safety and reliability for photovoltaic power station foundation construction.
products parameters
|
Impact frequeney(bpm) |
350-800 |
|
Impact(J) |
1300 |
|
Hydraulic ramming flow (L/min) |
50-110 |
|
Max ramming length (mm) |
6000 |
|
Oil pump |
40/40/32 |
|
Hydraulic system pressure (Mpa) |
25-30 |
|
Diesel engine power (KW) |
85 Yuchai 4 cylinders |
|
Drilling carriage Pitch angle |
120⁰ |
|
Drilling boom swing angle |
150⁰ |
|
Climb ability(º) |
30 |
|
Crawler Chassis width(mm) |
400 |
|
Dimension(L*W*H)(mm) |
6500*2300*2800 |
|
Weight(kg) |
6500 |
|
Walk speed(km/h) |
3 |
|
For rotary drilling |
|
|
Rotary head torque |
13000N.m |
|
Rotary speed |
180r/min |
|
Bore diameter(DTH hammer) |
90-300mm |
|
Bore depth |
20-100m |
|
Air consumption |
10-26m³/min |
|
Air pressure |
0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
|
Bore diameter(auger) |
Max 600mm |
|
Bore depth |
0-30m |
|
Rotation speed |
0-110r/min |
Products features
Precise Positioning
Equipped with four cylinders for precise positioning, this system allows for adjustment of the drill head's position forward, backward, left, or right to compensate for uneven ground, significantly enhancing piling efficiency and accuracy.

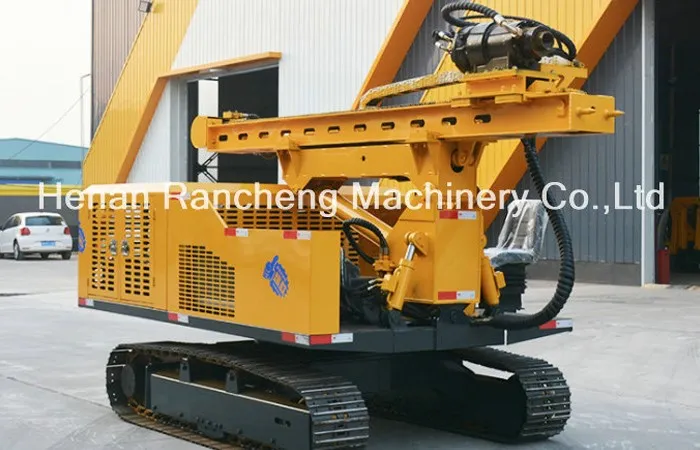

Advanced Feed Slide Design
The feed slide has a telescopic compensation function with a protective cover on top to prevent drill head displacement, ensuring operational safety. The high-frequency hydraulic hammer can be replaced with a power head to meet various operational requirements.
Powerful Engine System
Powered by an 85kw Yuchai turbocharged engine, it delivers ample power, reliable performance, and stable long-term operation to handle demanding construction tasks.

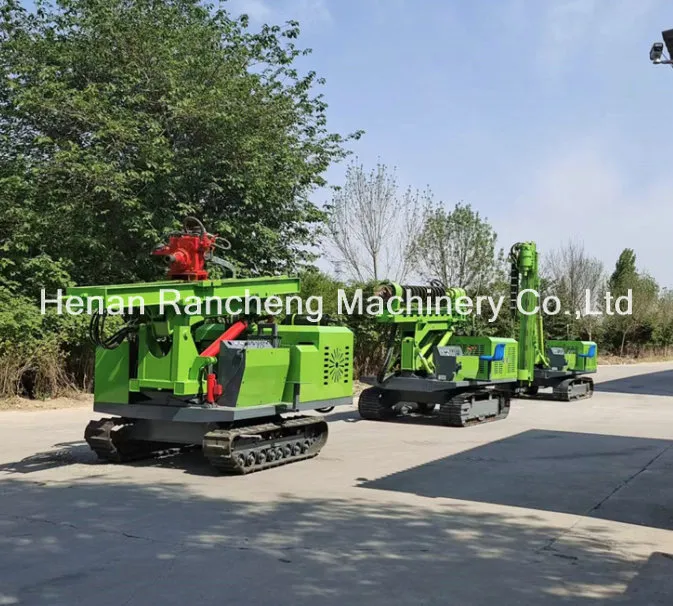

Adaptability to Complex Terrain
Offers customization for 360° rotation or a high-low leg design, with a single-side track extension height of up to 1.2 meters, allowing for easy adaptation to complex terrains and challenging work environments.

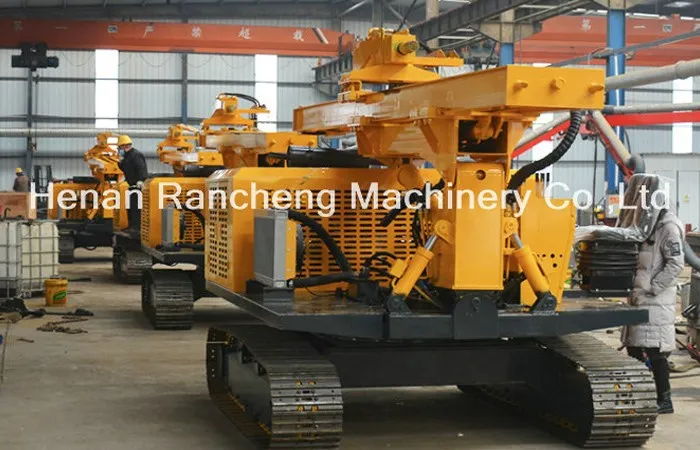

Packaging & Shipping
Delivery time: 10-15days
We use professional equipment to frame the boxes. We will arrange specially-assigned person to inspect every step. Ensure transportation safety.
application
RC240Y bored pile machine is mainly used for pile anchoring, water wells, photovoltaic solar rotary piles, and blasting holes and rock drilling in stone projects such as water conservancy, power stations, open-pit mining, and road construction.
Certificate
Our products have passed CE certification and ISO9001 quality management system certification, ensuring that they meet international standards in terms of safety, reliability and quality.
FAQ
Q: What brand is the solar pile driver engine?
A: We offer both domestic and imported engine options, and customization is available to meet customer requirements.
Q: Can the guide rails be installed in the front, back, left, and right?
A: The guide rails are installed at the front and back as standard, but we can customize the positioning to suit customer needs.
Q: What is the packaging for the solar pile driver?
A: The machine is packed in export-standard packaging, with the net weight of the unit ranging from 2.2 to 4.6 tons, depending on the size.
Q: Does the solar pile driver have a GPS function?
A: The machine does not have a GPS function, but we can provide customization options.
Q: How much does a photovoltaic pile driver cost?
A: Prices vary according to the model and type of photovoltaic pile driver.
