Products Description

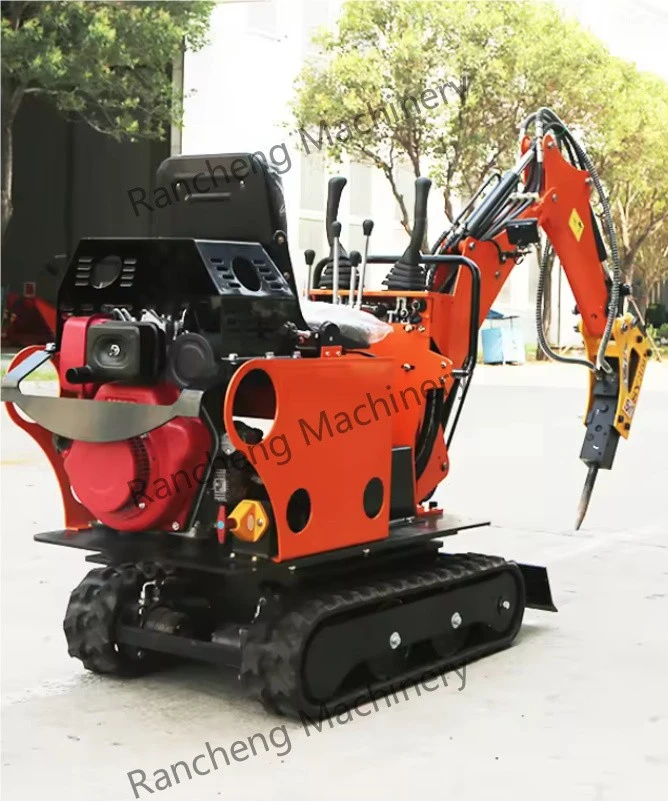

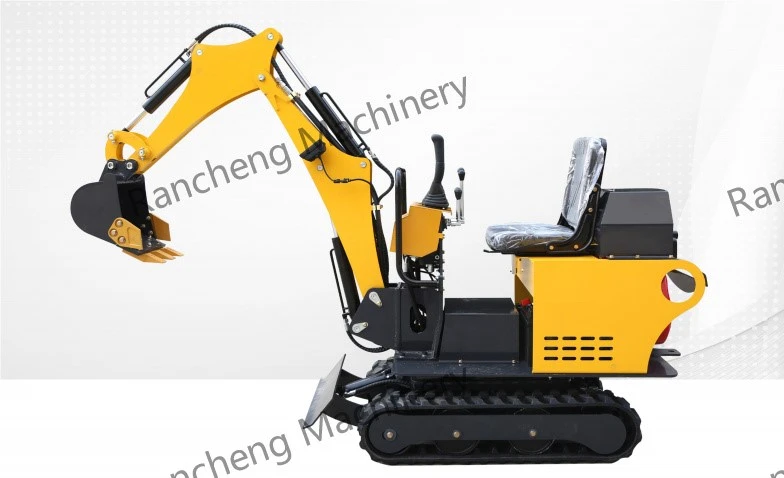

The latest 0.8T small excavator launched by our factory is a multi-purpose machine suitable for various working environments such as agricultural and forestry planting, farmland transformation, municipal engineering, garden cultivation and river dredging. It has multi-functional features such as excavation, crushing, hook cleaning, drilling, bulldozing, low fuel consumption, high efficiency, and can greatly save time and labor.
The 0.8T small excavator is equipped with an original imported engine, which meets the Euro III emission standards, and is equipped with imported hydraulic parts and a hydraulic system with load-sensitive technology. It is flexible and accurate in operation and suitable for working in small spaces. The 1.4m turning radius, variable-length chassis and boom deflection design ensure safe and reliable construction.
products parameters
|
Product configuration |
|
|
Work Quality |
0.8t |
|
Engine Brand |
Koop |
|
Emission Standard |
National II |
|
Engine Model |
192FA |
|
Engine Power |
8kW/3600rpm |
|
Fuel Tank Volume |
5L |
|
Main Pump Displacement |
6.5mL/r |
|
Hydraulic Tank Volume |
13L |
|
Working Pressure |
16MPa |
|
Dimensions |
|
|
Length |
2600mm |
|
Width |
720mm |
|
Height |
2000mm |
|
Wheelbase |
860mm |
|
Platform Ground Clearance |
350mm |
|
Track Width |
180mm |
|
Track Height |
320mm |
|
Working Parameters |
|
|
Maximum Excavation Height |
2460mm |
|
Maximum Unloading Height |
1730mm |
|
Maximum Excavation Depth |
1400mm |
|
Maximum Excavation Radius |
2490mm |
|
Min turning radius |
1400mm |
|
Excavator Arm Force |
4kn |
|
Bucket Digging Force |
6kn |
|
Maximum Digging Capacity |
7kn |
|
Bucket Capacity |
0.02m |
|
Standard Bucket size |
300mm |
|
Walking Speed |
2.5km/h |
|
Gradeability |
30° |
Products features
01. Unique Boom Structure Design: The boom adopts a unique design that enhances the stability and flexibility of the 0.8t small excavator, adapting to various working needs.
02. Smooth Pipelines Before Operation: Pipelines are fully checked before the operation to ensure smooth functioning, guaranteeing construction efficiency.
03. Protective Cover Design: A specialized protective cover effectively shields the pipelines from external damage, prolonging the equipment's lifespan.
04. Renowned Brand Boom Cylinder: The boom cylinder uses a well-known brand, with an integrated cylinder design that is more advanced than traditional welding technology, improving structural strength and durability.
05. Precisely Machined Structural Parts: All structural parts are precisely machined to ensure high precision and long-term service life of the machine.
06. High-Quality Surface Treatment: Using shot blasting, acid pickling, and baking processes, the parts' surfaces have high gloss and strong paint adhesion, ensuring long-term corrosion resistance.
More Optional Configurations
1. Canopy
2. Cabin
3. Steel Crawler
4. Swing arm
5. Movable chassis
6. Other attachments
Packaging & Shipping
Delivery time: 10-15days
We use professional equipment to frame the boxes. We will arrange specially-assigned person to inspect every step. Ensure transportation safety.
application
0.8t small excavator is suitable for municipal construction, farmland, garden projects and other small projects.
Certificate
Our products have passed CE certification and ISO9001 quality management system certification, ensuring that they meet international standards in terms of safety, reliability and quality.
