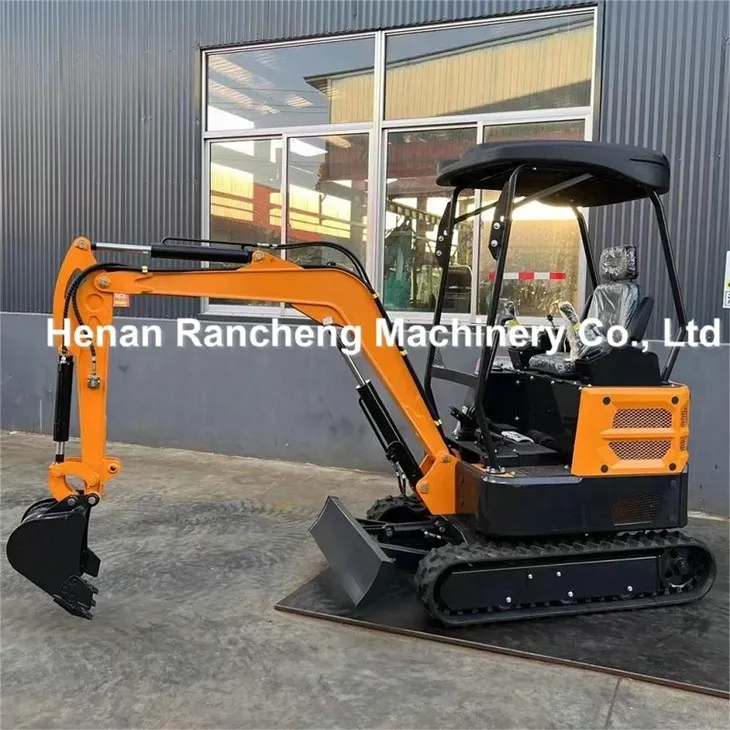

Mini Digger



This Mini Digger is designed around its 2-ton rated digging capacity, allowing it to safely and efficiently excavate and move materials weighing up to 2 tons. Its compact and flexible structure, combined with a high-performance Kubota engine and a 0.04m³ bucket, ensures stable operation in various construction tasks, including landscaping, residential projects, roadwork, and small-scale earthmoving.



The excavator's own weight varies depending on the model and configuration, but this does not affect its 2-ton digging capacity. The machine is designed to balance digging power with operational flexibility and stability. The bucket is engineered to concentrate force, making it suitable for soil excavation, trench digging, and material handling, which helps improve work efficiency.



Operation is simple, maintenance is convenient, and the engine provides sufficient power for continuous work. It performs reliably in both narrow urban spaces and more open job sites, delivering consistent and efficient digging performance.



By combining digging power with maneuverability, this 2-ton excavator provides reliable support for small to medium construction projects, urban worksites, and landscaping tasks, offering steady and efficient operation.







Engine	Kubota 902
Emission Standard	Epa V standard
Rated Power	11.8KW/2300rpm
Bucket capacity	0.04m³
Bucket excavating force	2 Ton
working device type	Backdigger
Turntable width	996mm
Chassis width	990mm
Turning radius	1587mm
Track width	230mm
Wheel distance	1230mm
Track gauge	760/1070mm
Bucket	500mm
Max.digging height	3535mm
Max dumping height	2445mm
Max.digging depth	2270mm
Max vertical digging depth	1910mm
Max.digging radius	3910mm
Min Turning radius	1600mm
Weight	2000KGS
Overall dimension (LXWXH)	2360X1330X2405mm







• Powerful Engine: Equipped with a Kubota 902 engine that meets EPA V emission standards, providing reliable and stable performance for continuous operation.



• Strong Digging Force: Bucket capacity of 0.04 cubic meters with a digging force of up to 2 tons, capable of handling a variety of soil and material types efficiently.



• Rear Bucket Design: The rear bucket allows flexible operation for backfilling, trenching, and precise excavation in confined spaces.



• Compact and Maneuverable: Small footprint and stable turning radius make it easy to operate in narrow or crowded work sites.



• Extended Working Range: Maximum digging and unloading heights allow effective handling of materials and expand the machine's operational envelope.



• Easy Operation and Maintenance: User-friendly controls and accessible maintenance points reduce downtime and ensure long-term reliability.







The mini digger combines a compact size with flexible features, effectively replacing manual labor and significantly reducing production costs. Its small turning radius allows for easy operation and transportation, while low energy consumption and high efficiency make it suitable for a wide range of tasks with minimal impact on the surrounding environment. It is suitable for agricultural activities such as trenching, tree planting, orchard cultivation, and fertilization, as well as for landscaping and trenching work in greenhouses and other confined spaces.





Delivery time: 10-15days

We use professional equipment to frame the boxes. We will arrange specially-assigned person to inspect every step. Ensure transportation safety.





Our products have passed CE certification and ISO9001 quality management system certification, ensuring that they meet international standards in terms of safety, reliability and quality.



FAQ



Q: Why choose us?

A: Rancheng Machinery is a very professional drilling rig supplier in China. We have rich experience in this industry for 11 years. Now our products are serving around the world. We have high-quality drilling rigs, professional and efficient services, competitive prices and fast delivery.



Q: Do you offer any custom designs?

A: Yes, we have our trade factory. We provide our customers with customized service. We can produce a superior product for you by your designs.



Q: How to order?

A: Step 1, please tell us what model and quantity you need;

Step 2, then we will make a proforma invoice for you to confirm the order details;

Step 3, we confirmed everything, then arrange the payment;

Step 4, finally we deliver the goods within the stipulated time.



Q: When will make delivery?

A: About 10-15 work days after receipt of the payment.



Q: After-sales service

A: One-year warranty for all kinds of products;



Q: Can we visit your factory?

A: Yes, we warmly welcome you to visit our factory.
