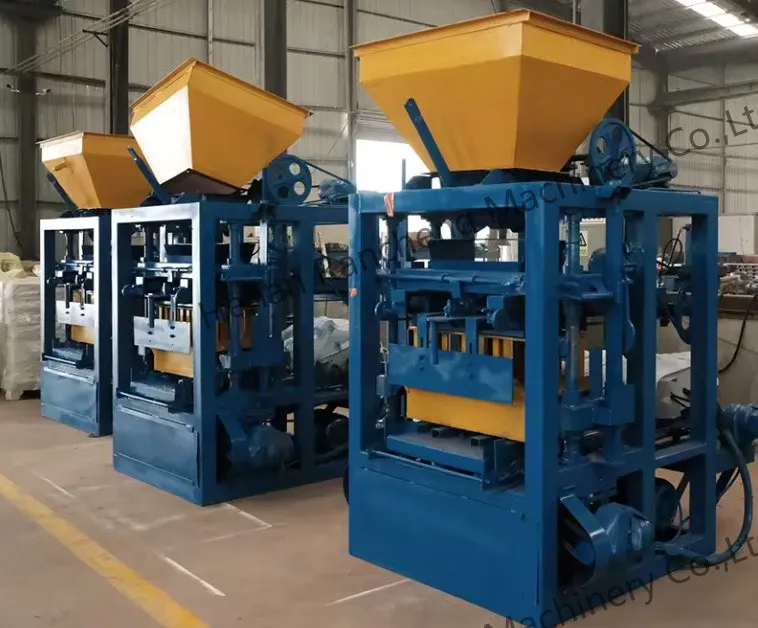

The RC4-24 small brick making machine is a compact and efficient solution for producing high-quality bricks and blocks. It comes with an integrated electric and hydraulic system, making each operational step interlocked for safety, smooth operation, and stability. The mold-releasing oil cylinder securely locks the mold box to the vibration table, allowing synchronous vibration that fluidizes and exhausts concrete in just a few seconds. This results in high-density blocks that can be stacked immediately, reducing the need for pallets.

Our machine supports a variety of materials, including coal ash, cement, sand, stone, and slag, enabling flexible production of standard bricks, hollow blocks, porous blocks, and paving bricks.

Small Brick Making Machine 5

products parameters

Host machine size	1850x1880x2240MM	Molding Cycle	20-24S
Vibration Force	33.5KN	Host Machine Power	13.45KW
Host machine weight	1.56T	Pallet Size	850x550x20MM

Production Capacity
Name	Block size	pcs per mould	pcs per hour	pcs per 8 hour
hollow block mould	400x200x200MM	4	360-450	2880-3600
solid brick mould	240x115x53MM	24	3600-4200	28800-33600
paver brick mould	200x100x60MM	12	1080	8640
paver brick mould	200x163x60MM	10	900	7200

Small Brick Making Machine 14

Products features

Automatic Material Distribution: We use a fully automatic spiral material laying system to ensure even filling of molds, improving block quality and consistency.
Speed Reducer: The Mode 350 speed reducer is used for raising and lowering the mold, extending its service life and supporting smooth operation.
Versatile Production: Changing molds allows us to produce hollow bricks, solid bricks, and pavers with the same machine.

Small Brick Making Machine 4

Block mould

The brick molds are constructed from 16# manganese steel. In addition to using high-quality raw materials, we employ precise line cutting technology and a 900℃ carburizing heat treatment process in the production of the brick molds. As a result, these molds offer enhanced performance and a longer service life.
■ The mould can be customized according to your need.

Vibration System

1. It adopts vibration molding technology equipped with three vibrators to ensure better quality, higher density, and greater strength of the blocks.
2.Low power can achieve exceptional moulding effect.

PLC Control System

Advanced PLC control system and screen display make the operation more convenient. Electrical components are made in
famous factories, which can providea long-lasting service.

Packaging & Shipping

About 10-15 work days after receipt of the payment.

Small Brick Making Machine 1

application

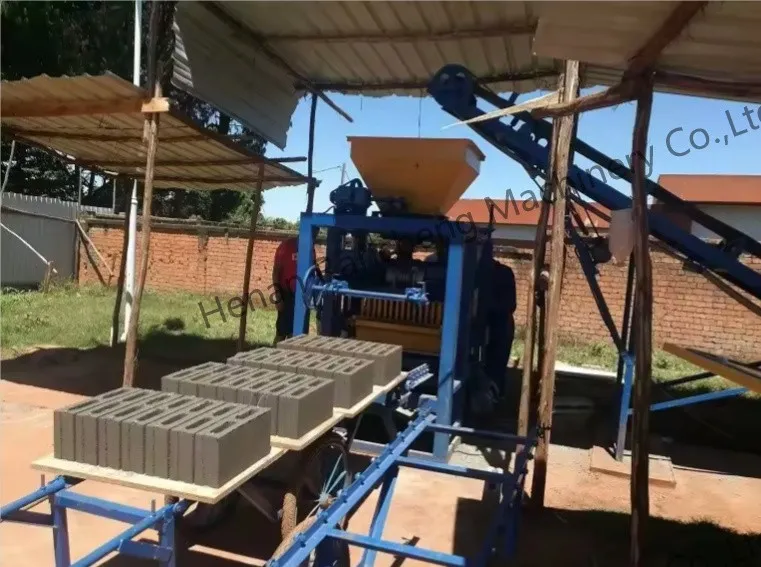

RC4-24 small brick making machine is used for small to medium-sized production of building materials. It is a good choice for projects that require quick, high-density block production with a variety of materials. The machine suits standard brick factories, construction sites, and paving block manufacturers. Its flexibility allows production of hollow bricks, solid bricks, and pavers, and we can customize molds to match your specific project requirements.

Block samples

Small Brick Making Machine 8
