General Description

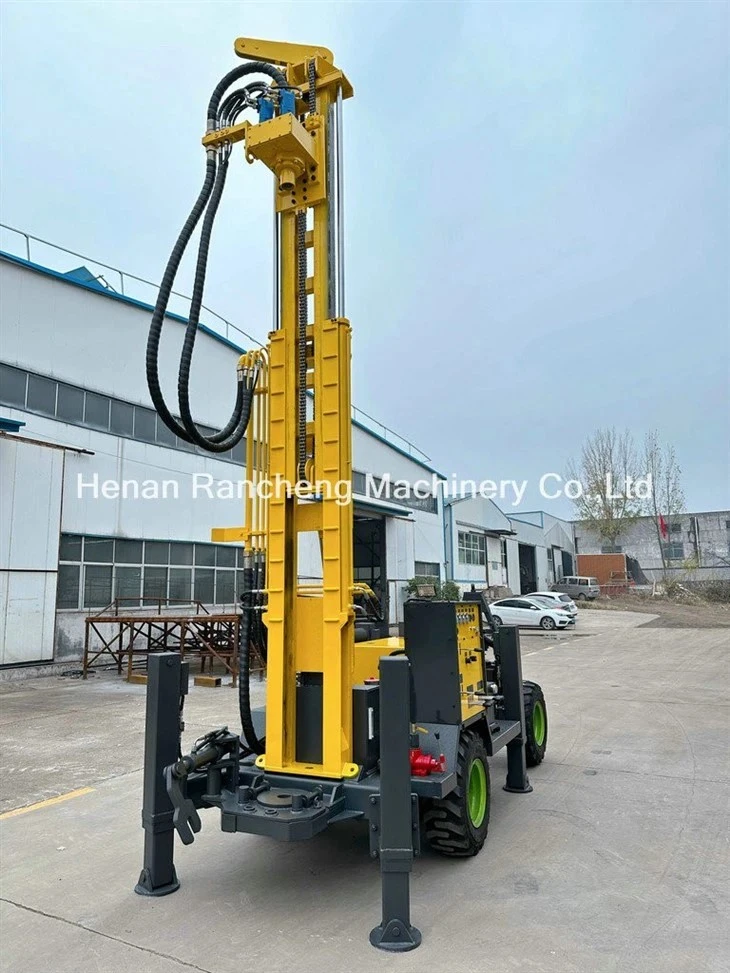

The RCF220W tractor deep rock water drilling rig can be flexibly adapted to a variety of accessories, supports dry hydraulic drilling, and meets various drilling needs. It is widely used in industrial and agricultural water conservancy, test wells and exploration and other fields. Excellent performance in complex tasks such as geothermal heating, engineering reinforcement, and gravel rock formation drilling. High-quality materials, compact design, efficient and stable, low failure rate. Economical and practical, cost-effective, and has a good market reputation.
Technical Parameters of RCF220W Deep Rock Water Drilling Rig
|
Bore diameter(hammer) |
90-300mm |
|
Bore depth |
220m |
|
Air consumption |
17-31m³/min |
|
Air pressure |
1.7-2.5Mpa |
|
Pipe diameter |
76mm/89mm |
|
Pipe length |
1m,2m,3m |
|
Lifting force |
13T |
|
Lifting speed |
2.5m/min |
|
Feeding speed |
0.5-5m/min |
|
Fast lifting speed |
24m/min |
|
Fast feeding speed |
35m/min |
|
Max torque of rotary |
3400-4700Nm |
|
Rotary speed |
45-70r/min |
|
Hoisting force of winch |
1.4T |
|
Mud Pump flow |
250L/min (option) |
|
High hydraulic leg |
1.5m |
|
Feeding efficiency |
10-35m/h |
|
Travel speed |
2.5Km/h |
|
Climb ability |
30° |
|
Dimension(L*W*H) |
4×1.75×2.25M |
|
Weight |
5500Kg |
|
Diesel engine |
65KW Quanchai engine |
Significant Advantages
The RCF220W deep rock water drilling rig is unique in the field of deep-sea drilling. It has strong deep drilling capabilities and is equipped with efficient drilling tools, such as diamond drill bits and tri-cone drill bits, which ensure the efficiency and accuracy of deep-sea drilling. Easy-to-understand operation and a user-friendly control panel and user interface reduce the risk of accidents and increase overall productivity. The four-wheel trailer design makes the deep rock water drilling rig easy to transport and operate in various terrains. The compact size and solid structure enable it to cope with harsh environmental conditions, providing users with stable and reliable drilling operation guarantees.
