Products Description
Henan Rancheng provides a range of manual well drilling equipment, including small rigs, crawler rigs, and trailer-mounted rigs. These machines are compact, low-maintenance, and cost-efficient, suitable for various terrains and drilling conditions.

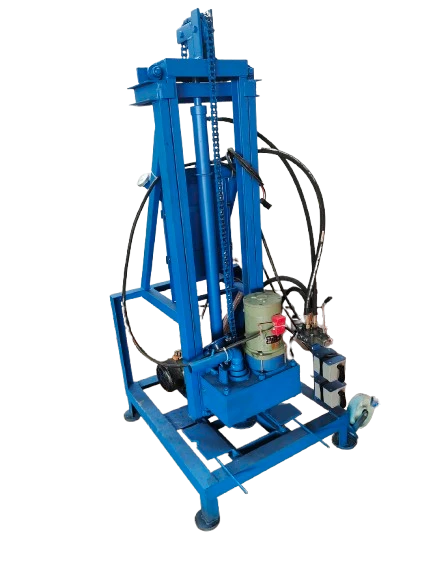

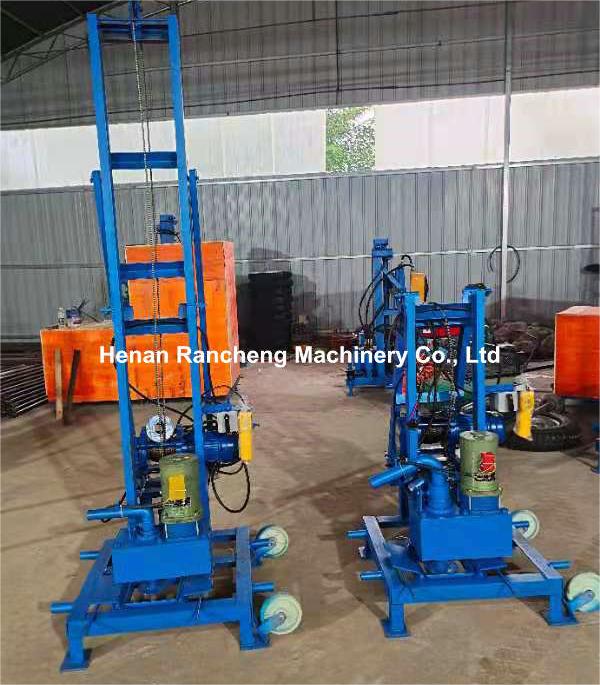

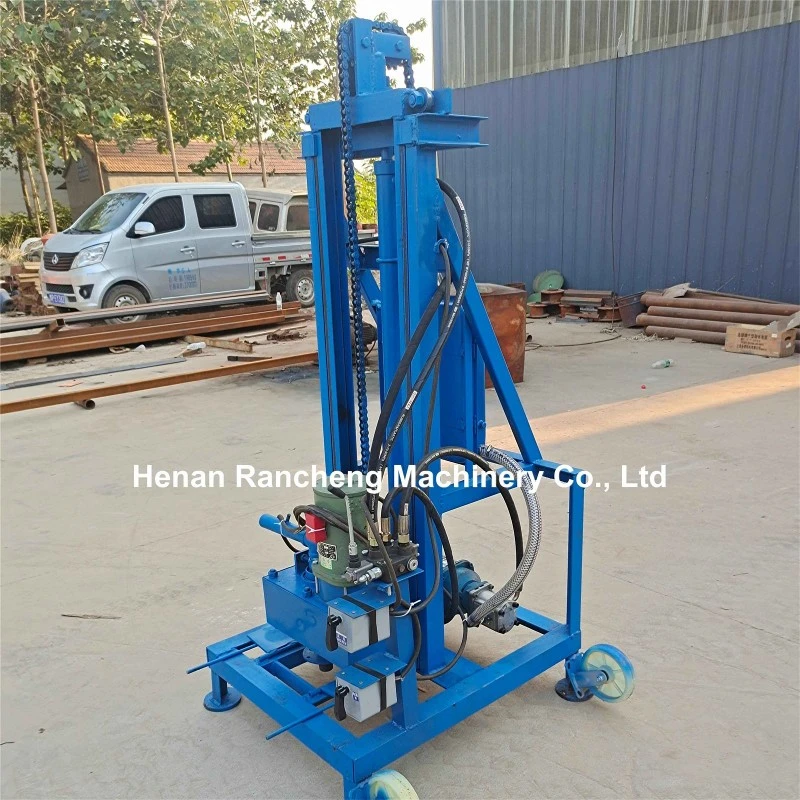

The RCS100E manual well drilling rig is designed for easy operation by a single person. It offers a drilling speed of approximately 10 meters per hour with low noise output, making it practical for use in remote or noise-sensitive areas. For a 100-meter-deep well, the drill pipe can typically be pulled out in about 10 minutes. The rig's lightweight structure allows for quick transport and repositioning, even by one person after drilling is completed.
products parameters
|
Type |
RCS100E manual well drilling equipment |
|
Max. Drilling Diameter |
100-300mm |
|
Max.Drilling Depth |
100m |
|
Driving motor Power |
60V 1500W |
|
Lifting motor power |
60V 1500W |
|
Water pump |
220V,2.2KW,12m3/min flow ,46m head of delivery |
|
DC potential transformer |
60V-80A DC ,Charging transformer |
|
Drilling Rod Length |
1.5m/piece |
|
Diameter of Drilling Rod |
42mm |
|
Dimension |
700X700X2400mm |
Products features
Convenient and efficient:
RCS100E manual well drilling equipment occupies only 1 square meter, with a height of 2.5 meters. The installation time is less than ten minutes, which is suitable for indoor and outdoor use; all lifting and drilling rod loading and unloading are mechanized, saving time and effort.
Safe and reliable:
50mm column steel frame support ensures safety and stability; the drill parallel shaft reducer structure has low noise and smooth operation, ensuring precision machining;
Health and safety:
The well pipe is fully enclosed to prevent shallow leakage and ensure the health and safety of drinking water.
Economical and practical
Equipped with universal wheels, it is more convenient to transport, and the operation and installation are very simple. It weighs about 40 kilograms and can be transported by a small tricycle for easy movement.
Packaging & Shipping
Delivery time: 10-15days
We use professional equipment to frame the boxes. We will arrange specially-assigned person to inspect every step. Ensure transportation safety.
application
RCS100E manual well drilling equipment is particularly suitable for home drilling. After use, dust and debris on the equipment should be cleaned in time to keep it clean; at the same time, the wear of each component should be checked, and serious wear components should be replaced in time. The water drilling rig should also be regularly maintained and serviced, such as adding lubricating oil, checking the electrical system, etc., to ensure its stable performance, extend its service life, and provide reliable protection for home drilling and other needs.
Certificate
Our products have passed CE certification and ISO9001 quality management system certification, ensuring that they meet international standards in terms of safety, reliability and quality.
