Products Description

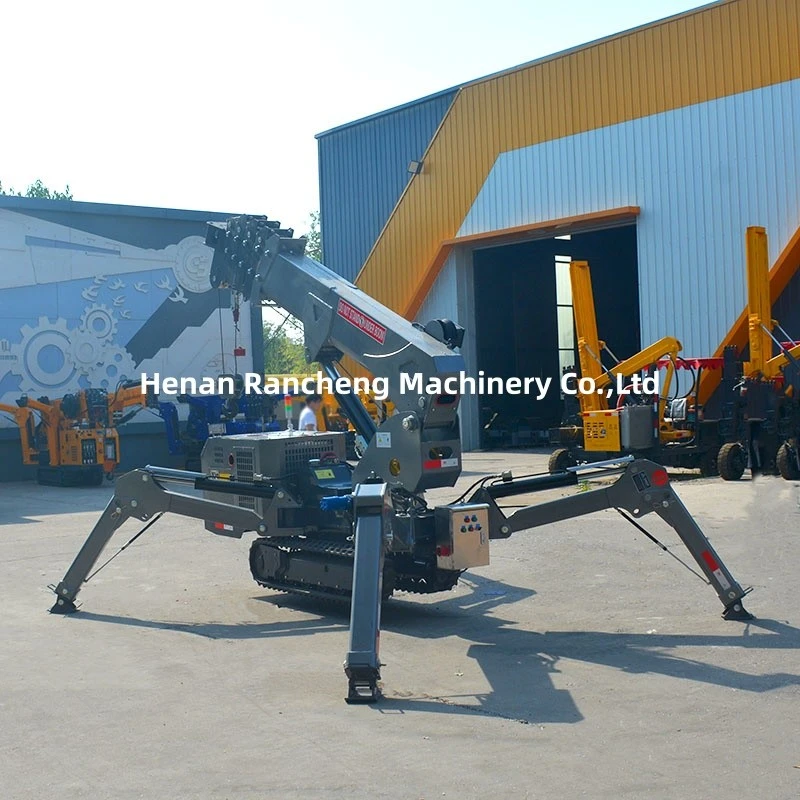

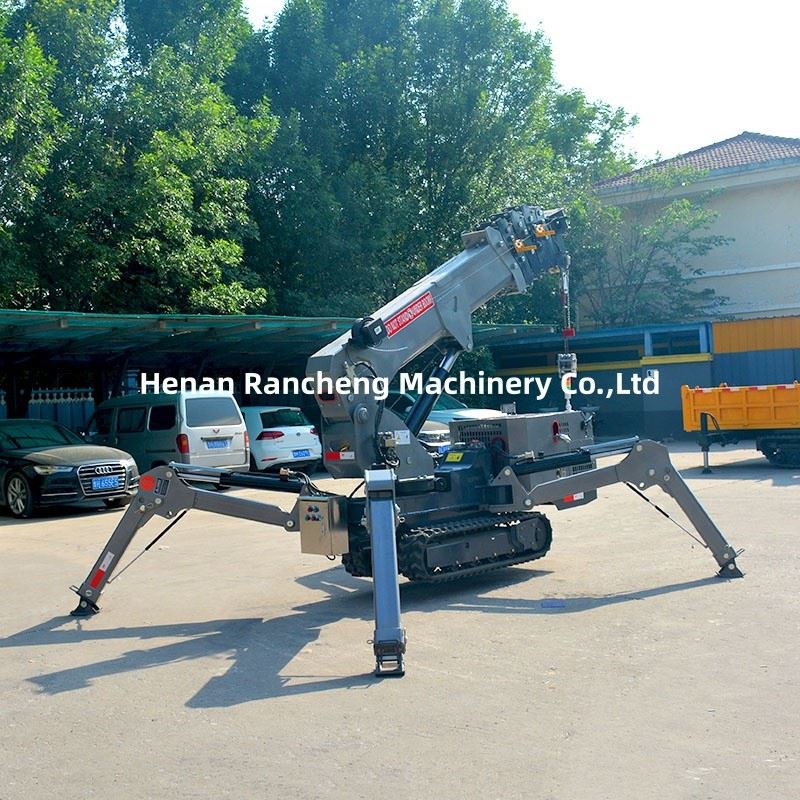

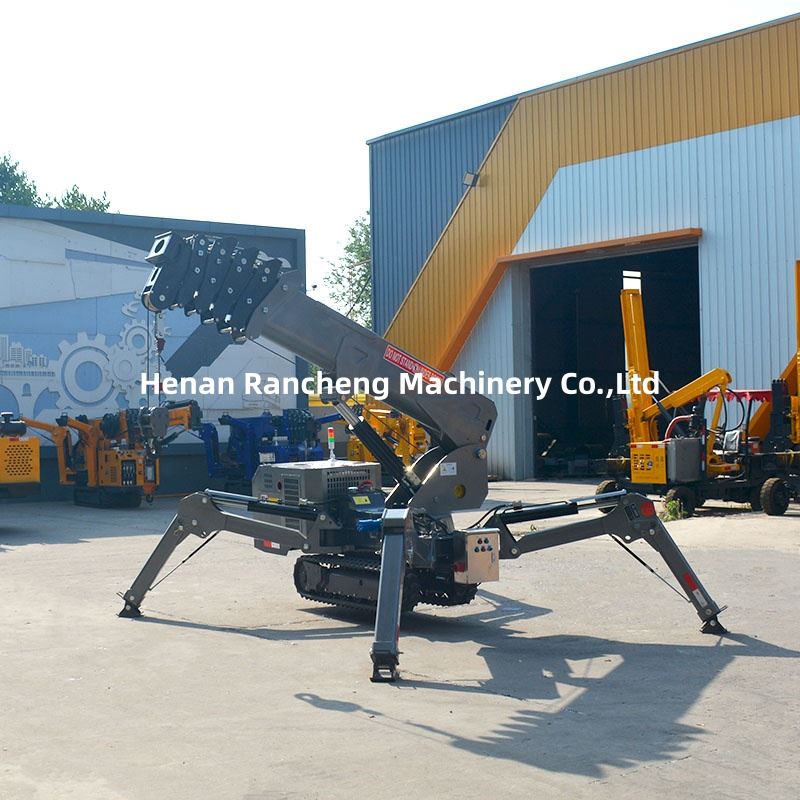

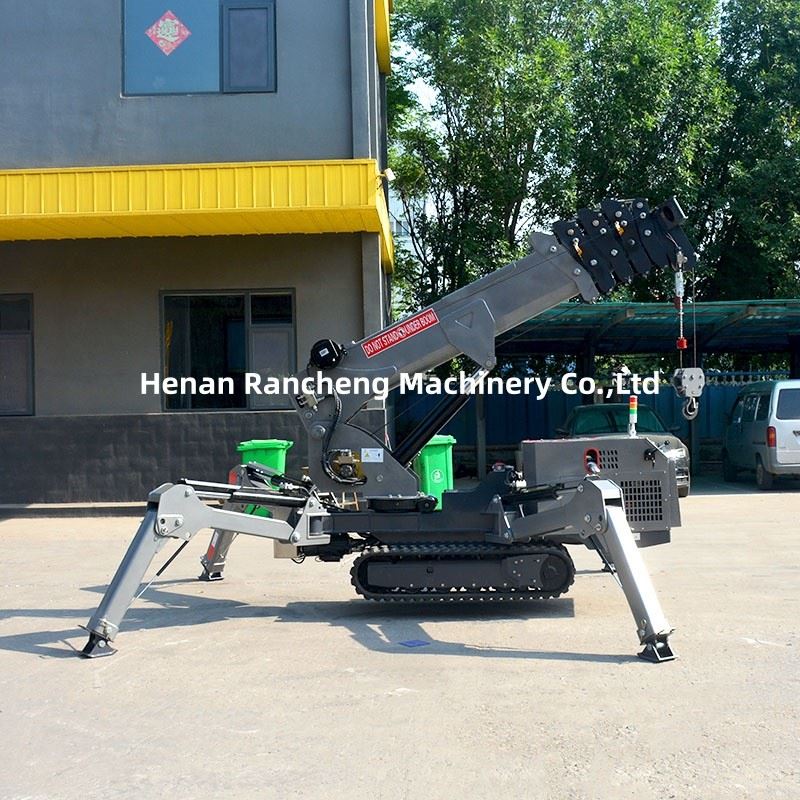

The 2T Mini Crawler Spider Crane is built for contractors who need a compact lifting solution with greater load capacity and improved jobsite stability. Featuring a reinforced chassis, enlarged outrigger footprint, and a maximum lifting height of 6.5m, it is suitable for steel erection, curtain wall installation, roof renovation, and industrial construction projects. The machine combines crawler mobility with reliable lifting performance, making it a practical choice for both indoor and outdoor operations.
Technical parameters
|
Track(mm) |
180(width)72(pitch)37(section) |
dead-weight(T) |
1.6T |
|
Maximum operating radius |
6m |
Standard configuration |
Diesel engine |
|
Maximum ground lift |
6.5m |
Length Width Height |
2.78m*0.71m*1.62m |
|
Winch device |
Hook lifting speed |
0-8m/min(4 ropes) |
|
|
Specification of steel wire rope |
φ8mm*45m |
||
|
Telescopic device |
Boom form |
2m×4-section lifting arm(Support customization) |
|
|
Boom length/time |
6.5m/20sec(Support customization) |
||
|
Luffing device |
Boom angle/time |
0-78°/13sec |
|
|
gyroscope |
Rotation angle/speed |
0-360°(continuous)/60sec |
|
|
Outrigger |
Outrigger movement form |
Manual screw out+oil pressure automatic support(two legs) |
|
|
Maximumextension amplitude(mm) |
3620(length)X3440(rear)X3470(front) |
||
|
running gear |
Walking mode |
Hydraulic motor drive |
|
|
Walking speed |
0-2.5km/h |
||
|
Gradeability |
25°(36%) |
||
|
Electrical Machinery |
voltage |
AC380V |
|
|
engine |
Manufacturer |
Honda(Support customization) |
|
|
Type/displacement |
390 |
||
|
start mode |
Electric start |
||
|
start performance |
-5℃-40℃ |
||
|
Fuel/Volume |
Gasoline/15L |
||
|
Battery capacity |
12v 45AH |
||
|
Fuel consumption rate |
274g/kW-h |
||
|
noise level |
Rated speed≤81.5dBA(1m) |
||
|
operating system |
Operation type(boom/eg),manual walking |
Manual operation,manual walking |
|
|
Operational Characteristics |
Manual operation |
||
Key Features
Reinforced Chassis Structure
The upgraded chassis design improves machine rigidity and lifting stability, making it suitable for construction environments where heavier materials must be handled safely.
Enhanced Stability on Job Sites
Compared with smaller models, the larger outrigger deployment area provides stronger support on uneven ground conditions commonly found on construction sites.
Compact Size with Construction Capability
The crane remains easy to transport and position while providing sufficient lifting performance for steel components, glass panels, mechanical equipment, and construction materials.
Dual Power Configuration
Gasoline and electric power options allow operation in different working environments, from factory buildings to outdoor construction projects.
Designed for Daily Contractor Use
The crawler travel system allows efficient movement around job sites, reducing the need for repeated machine relocation.
Applications
Steel Structure Installation
Handling steel beams, columns, and prefabricated components during industrial and commercial construction.
Curtain Wall and Facade Projects
Positioning glass panels, aluminum frames, and facade materials in restricted construction areas.
Roof Renovation and Equipment Placement
Lifting HVAC systems, solar equipment, and construction materials to elevated work areas.
Factory Construction and Expansion
Supporting equipment installation and structural assembly inside industrial facilities.
Municipal and Infrastructure Projects
Suitable for utility construction, station upgrades, and small-scale infrastructure works.
Frequently Asked Questions
What is the advantage of the 2T model over smaller spider cranes?
The 2T model offers higher lifting capacity, a reinforced chassis, and improved stability, making it better suited for construction and installation projects involving heavier materials.
Can the crane work on uneven construction ground?
Yes. The enlarged outrigger system and reinforced structure help maintain stability on typical construction site surfaces.
Is the crane suitable for outdoor projects?
Yes. The crawler undercarriage and dual-power configuration allow the crane to operate efficiently in outdoor construction environments.
What materials can this crane typically handle?
The crane is commonly used for lifting steel components, glass panels, mechanical equipment, HVAC units, construction materials, and prefabricated structures.
Is remote control available?
Yes. Wireless remote control can be equipped as an optional accessory to improve operational visibility and convenience.
Which customers commonly choose this model?
Construction contractors, steel structure installers, facade contractors, equipment rental companies, and infrastructure builders are typical users of the 2T Mini Crawler Spider Crane.
