Products Description
RCQ-2D geophysical logging equipment is a collection tool to obtain information about reservoirs and formations beneath the earth's surface. The equipment enables geophysicists and geologists to measure and interpret geological parameters with great accuracy and precision, getting valuable data that helps to make right decisions about deep wells.
Products Specification
12bit A/D Conversion, Program-Controlled Magnifcation K=0.5~128
Counting Channel: f ≤ 500kHz
Digital Signal Transmission Frequency:9600bit/s
Power Supply Cycle:400ms
Current: 2mA-500mA Optional
Signal Input Range: ≤ ± 10V
Continuous Working Time: ≤ 24hr
Power Consumption: <200W
Volume: 420*260*210mm
Weight:<7kg
Working Temperature Range:-1°C~+50°C
Working Power Supply: AC220V ± 10% 50Hz ± 5%
Logging Speed: 0~30m/min Adjustable(as per sampling interval)

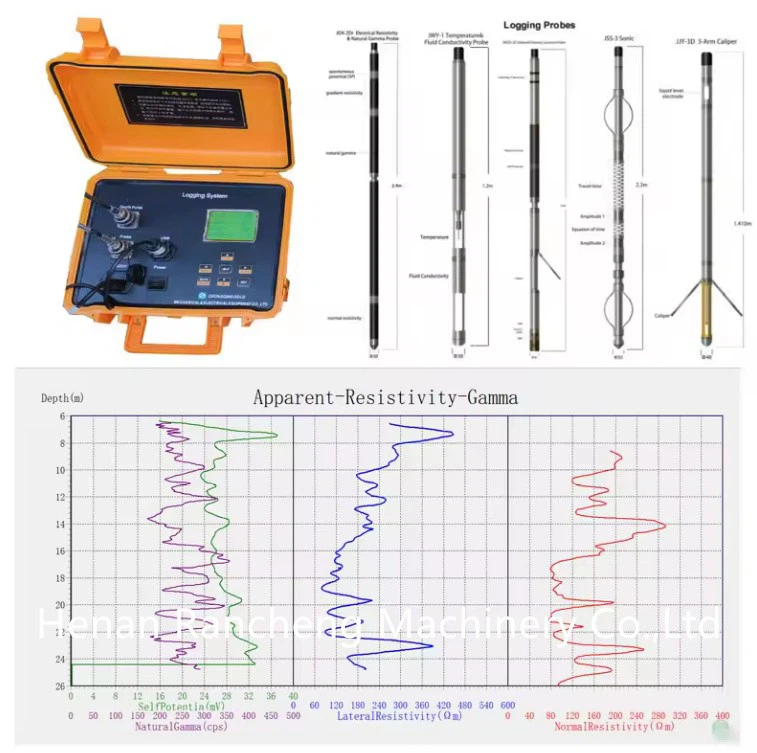

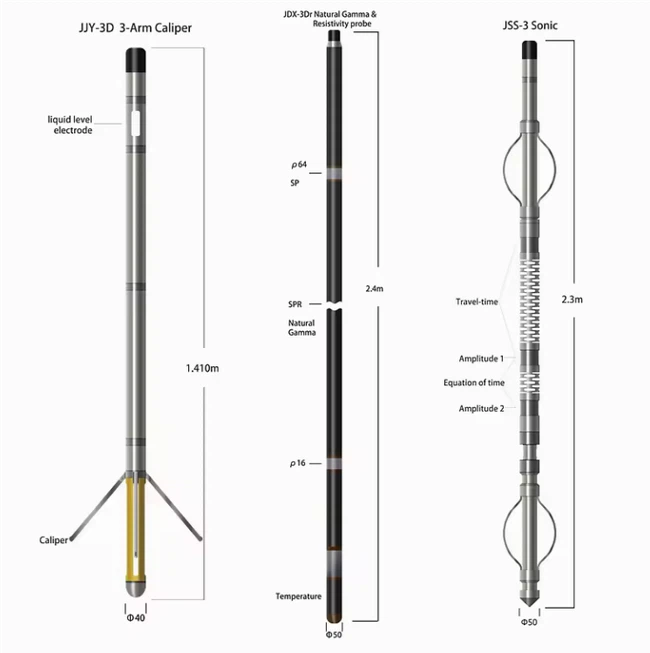

Geophysical Logging Probes for Option:
|
No. |
Name |
Parameters |
|
1 |
Resistivity and gamma |
SP, apparent resistivity, natural gamma |
|
2 |
Combined porbe |
16/64 resistivity, SP, natural gamma, temperature, SPR |
|
3 |
RES and IP |
16/64 resistivity, SP, IP |
|
4 |
Three component magnetometer |
Magnetic Tri-component |
|
5 |
Temperature and fluid resistivity |
Temperature, fluid resistivity |
|
6 |
Three-arm caliper |
Diameter, liquid level |
|
7 |
Sonic |
Travel time, equation of time, amplitude |
|
8 |
Combined density |
Density, laterolog resisitivity, natural gamma, sp,caliper |
|
9 |
Neutron and gamma |
Natural gamma, porosity |
Products Features

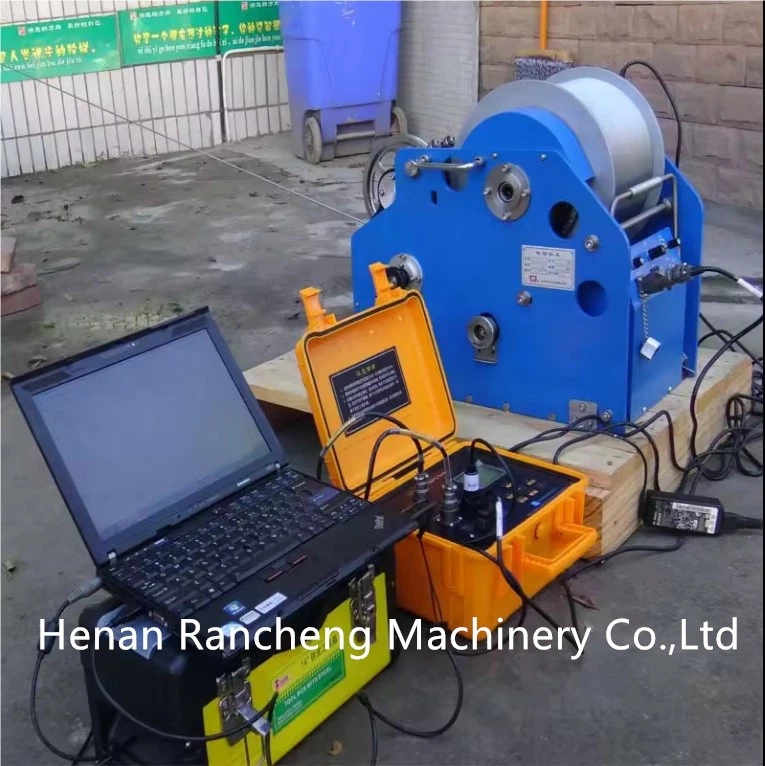

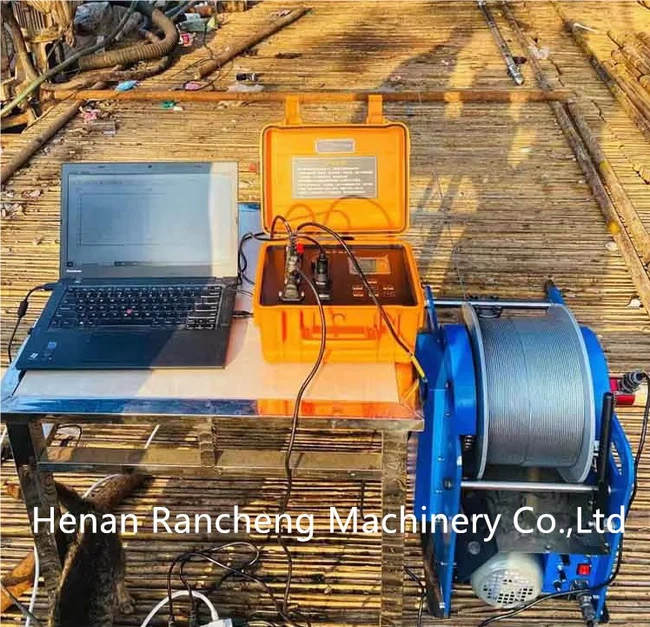

Power: RCQ-2D cable winch is powered by marine frequency conversion motor, tombarthite permanent magnet DC motor, industrial frequency conversion motor, dc motor, ac asynchronous motor as power source. The selection of power source mainly considers the factors such as high temperature and humidity environment, high altitude environment, convenient field transportation, convenient maintenance, long-term continuous operation and so on, so as to ensure the reliability of the whole set of equipment.
Automatic cable arrangement function: RCQ-2D cable winch has automatic cable arrangement function, which ensures that the cable can be precisely and neatly arranged when dropping and lifting, and can greatly prolong the service life of the measuring cable. It is very important that the winch has automatic cable arrangement function especially for steel wire armored cable.
Automatic braking function: RCQ-2D cable winch has the automatic braking function. The winch can automatically stop when encountered in the use process of emergencies, such as power outages, winch controller failure and so on to keep the tube safe, so the tube will not fall.
Manual function: RCQ-2D logging cable winch is equipped with a handle, which can drop or lift by hand without electricity in special circumstances.
Accurate measurement of cable length: RCQ-2D logging cable winch has precise cable metering device to ensure that the geophysical logging equipment has an accurate depth in the process of lifting or dropping of cables.
Application

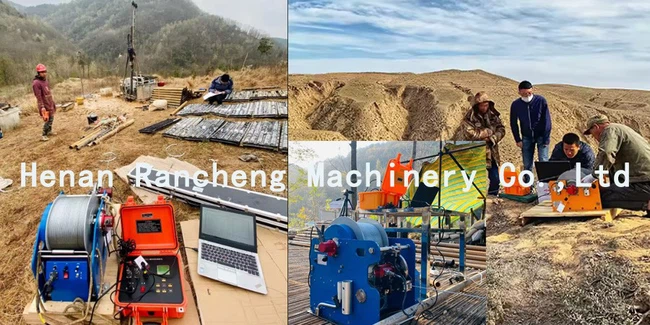

RCQ-2D geophysical logging equipment is a multi-functional and efficient tool for geophysical exploration and geological investigation. It has a wide range of applications and can be used in various scenarios. Its ease of movement and transportation makes it ideal for use in remote areas. The device has high resolution and can accurately measure multiple parameters. Geophysical logging equipment also has automatic calculation function and self-compensation error function, reducing the chance of error.
Company Profile
We are a professional drilling rig supplier in China, which is dedicated in designing and manufacturing water well drilling rig, rotary drilling rig, anchor drilling rig, DTH drilling rig, solar pile driver, mud pump, air compressor and drilling tools etc. We have advanced technology, Modern equipment, first-class team and rich experience, and our products passed ISO9001 ,CE etc certification, which have been exported to around 200 countries and areas in the world.
Pursuing the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
